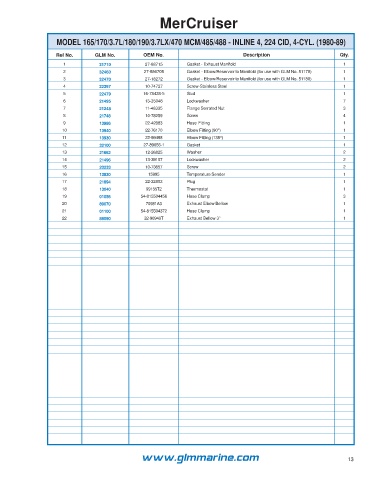

MerCruiser
MODEL 165/170/3.7L/180/190/3.7LX/470 MCM/485/488 - INLINE 4, 224 CID, 4-CYL. (1980-89)
Ref No. GLM No. OEM No. Description Qty.
1 31710 27-68715 Gasket - Exhaust Manifold 1
2 32460 27-856705 Gasket - Elbow/Reservoir to Manifold (for use with GLM No. 51170) 1
3 32470 27-18272 Gasket - Elbow/Reservoir to Manifold (for use with GLM No. 51180) 1
4 22397 10-74727 Screw-Stainless Steel 1
5 22479 16-78438-5 Stud 1
6 21495 13-35048 Lockwasher 7
7 21248 11-46335 Flange Serrated Nut 3
8 21748 10-78259 Screw 4
9 13986 22-42683 Hose Fitting 1
10 13940 22-76170 Elbow Fitting (90º) 1
11 13930 22-99498 Elbow Fitting (135º) 1
12 32100 27-89656-1 Gasket 1
13 21662 12-26825 Washer 2
14 21496 13-39107 Lockwasher 2
15 23233 10-73657 Screw 2
16 13830 15995 Temperature Sender 1
17 21894 22-32803 Plug 1
18 13040 99155T2 Thermostat 1
19 01056 54-815504456 Hose Clamp 3
20 89070 70981A3 Exhaust Elbow Bellow 1
21 01100 54-815504372 Hose Clamp 1
22 89090 32-90949T Exhaust Bellow 3” 1
