MerCruiser

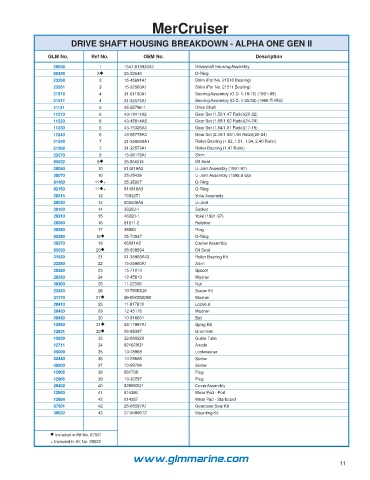

                         DRIVE SHAFT HOUSING BREAKDOWN - ALPHA ONE GEN II

                 GLM No.       Ref No.          OEM No.                               Description
                   29000          1       1547-815930A7           Driveshaft Housing Assembly
                   80420         2       25-32546                O-Ring
                   23260          3       15-45691A1              Shim (For No. 21510 Bearing)
                   23261          3       15-32563A1              Shim (For No. 21511 Bearing)
                   21510          4       31-61100A1              Bearing Assembly (O.D. 1-15/16) (1991-95)
                   21511          4       31-32575A1              Bearing Assembly (O.D. 1-25/32) (1996-THRU)
                   11131          5       45-55796-1              Drive Shaft
                   11210          6       43-18411A2              Gear Set (1.50/1.47 Ratio)(20-22)
                   11220          6       43-45814A5              Gear Set (1.65/1.62 Ratio)(24-24)
                   11230          6       43-75325A3              Gear Set (1.84/1.81 Ratio)(17-19)
                   11240          6       43-55778A3              Gear Set (2.40/1.98/1.94 Ratio)(20-24)
                   21540          7       31-359900A1             Roller Bearing (1.62, 1.81, 1.94, 2.40 Ratio)
                   21560          7       31-32573A1              Roller Bearing (1.47 Ratio)
                   23270          8       15-36178A1              Shim
                   85022         9       26-864319               Oil Seal
                   28050         10       814819A2                U-Joint Assembly (1991-97)
                   28070         10       25-25439                U-Joint Assembly (1998 & Up)
                   81180        11+      25-35027                O-Ring
                   82150        11+      814819A3                O-Ring
                   28315         12       75832T1                 Yoke Assembly
                   28030         13       805536A2                U-Joint
                   28100         14       39383-1                 Socket
                   28310         15       46020-1                 Yoke (1991-97)
                   28350         16       81611-2                 Retainer
                   28390         17       35983                   Ring
                   82380         18      25-70937                O-Ring
                   28370         19       66081A2                 Carrier Assembly
                   85030         20      26-826894               Oil Seal
                   21520         21       31-35988A12             Roller Bearing Kit
                   23280         22       15-35980A1              Shim
                   28380         23       15-71013                Spacer
                   28330         24       12-45810                Washer
                   28360         25       11-22339                Nut
                   22420         26       10-79953Q2              Screw Kit
                   31170         27      26-8M0058390            Washer
                   28410         28       11-817618               Locknut
                   28420         29       12-45176                Washer
                   28430         30       10-816601               Bolt
                   12930         31      24-17997A1              Sping Kit
                   12831         32      26-88397                Grommet
                   12829         33       32-860220               Guide Tube
                   12711         34       821629Q1                Anode
                   05009         35       13-78968                Lockwasher
                   22440         36       10-28668                Screw
                   28300         37       10-98794                Screw
                   12965         38       861738                  Plug
                   12966         39       19-32297                Plug
                   28402         40       828692Q1                Cover Assembly
                   12663         41       814386                  Wear Pad - Port
                   12664         42       814387                  Wear Pad - Starboard
                   87501         42       26-88397A1              Gearcase Seal Kit
                   39622         43       27-94996T2              Mounting Kit


                   Included in Kit No. 87501
                  + Included in Kit No. 39622
