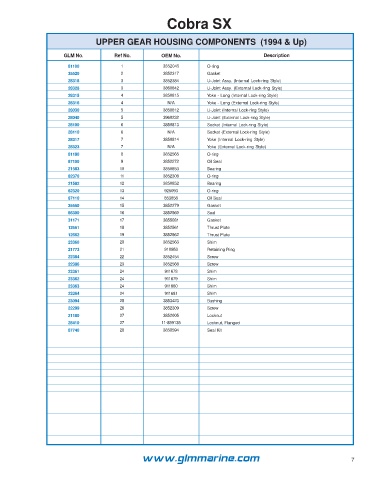

Cobra SX



                                 UPPER GEAR HOUSING COMPONENTS  (1994 & Up)

                      GLM No.          Ref No.        OEM No.                           Description
                        81100            1             3852045        O-ring
                        35520            2             3852317        Gasket
                        28318            3             3852384        U-Joint Assy. (Internal Lock-ring Style)
                        28328            3             3860842        U-Joint Assy. (External Lock-ring Style)
                        28315            4             3850815        Yoke - Long (Internal Lock-ring Style)
                        28316            4              N/A           Yoke - Long (External Lock-ring Style)
                        28030            5             3850812        U-Joint (Internal Lock-ring Style)
                        28040            5             3960232        U-Joint (External Lock-ring Style)
                        28100            6             3850813        Socket (Internal Lock-ring Style)
                        28110            6              N/A           Socket (External Lock-ring Style)
                        28317            7             3850814        Yoke (Internal Lock-ring Style)
                        28323            7              N/A           Yoke (External Lock-ring Style)
                        81180            8             3852565        O-ring
                        87100            9             3852272        Oil Seal
                        21583            10            3850853        Bearing
                        82370            11            3852308        O-ring
                        21582            12            3850852        Bearing
                        82320            13            925093         O-ring
                        87110            14            853858         Oil Seal
                        35550            15            3852279        Gasket
                        86300            16            3852560        Seal
                        31171            17            3855081        Gasket
                        12661            18            3852561        Thrust Plate
                        12662            19            3852562        Thrust Plate
                        23360            20            3852563        Shim
                        21773            21            910953         Retaining Ring
                        22384            22            3852454        Screw
                        22386            23            3852568        Screw
                        23361            24            911678         Shim
                        23362            24            911679         Shim
                        23363            24            911680         Shim
                        23364            24            911681         Shim
                        23094            25            3853423        Bushing
                        22299            26            3852309        Screw
                        21180            27            3852005        Locknut
                        28410            27           11-859135       Locknut, Flanged
                        87740            28            3850594        Seal Kit























                                                www.glmmarine.com                                                    7
