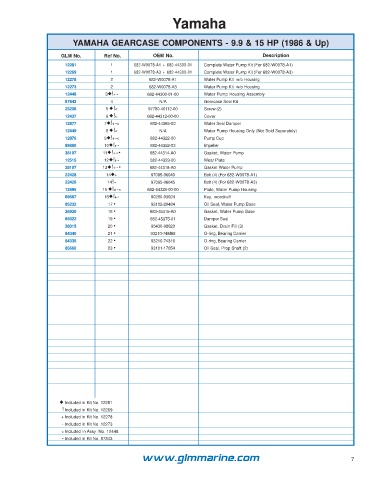

                         YAMAHA GEARCASE COMPONENTS - 9.9 & 15 HP (1986 & Up)

                     GLM No.       Ref No.          OEM No.                             Description
                       12281          1      682-W0078-A1 + 682-44300-01  Complete Water Pump Kit (For 682-W0078-A1)
                       12269          1      682-W0078-A3 + 682-44300-01  Complete Water Pump Kit (For 682-W0078-A3)
                       12278          2           682-W0078-A1      Water Pump Kit  w/o Housing
                       12273          2           682-W0078-A3      Water Pump Kit  w/o Housing
                       12448        3!+ -        682-44300-01-00   Water Pump Housing Assembly
                       87843          4               N/A           Gearcase Seal Kit
                       23238        5 !<         97780-40112-00    Screw (2)
                       12437        6 !<         682-44312-00-00   Cover
                       12877        7!+ -<        682-44365-00     Water Seal Damper
                       12449        8 !<             N/A           Water Pump Housing Only (Not Sold Separately)
                       12876        9!+ -<        682-44322-00     Pump Cup
                       89880        10!+ -        682-44352-03     Impeller
                       38107       11!+ - •       682-44314-A0     Gasket, Water Pump
                       12515       12!+ -         682-44323-00     Wear Plate
                       38107       13!+ - •       682-44315-A0     Gasket Water Pump
                       22428        14+           97095-06040      Bolt (4) (For 682-W0078-A1)
                       22426         14! -         97095-06045      Bolt (4) (For 682-W0078-A3)
                       12495       15 !+ -<      682-44328-00-00   Plate, Water Pump Housing
                       89587        16!+ -        90280-03024      Key, woodruff
                       85232         17 •          93102-20484      Oil Seal, Water Pump Base
                       36930         18 •          683-45315-A0     Gasket, Water Pump Base
                       85622         19 •          682-45375-01     Damper Seal
                       38015         20 •          90430-08020      Gasket, Drain Fill (3)
                       84340         21 •          93210-74M68      O-ring, Bearing Carrier
                       84335         22 •          93210-74316      O-ring, Bearing Carrier
                       85660         23 •          93101-17054      Oil Seal, Prop Shaft (2)





























                      Included in Kit No. 12281
                      ! Included in Kit No. 12269
                     + Included in Kit No. 12278
                      - Included in Kit No. 12273
                     < Included in Assy. No. 12448
                      • Included in Kit No. 87843
