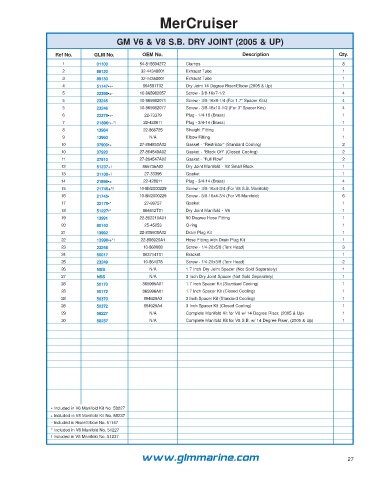

MerCruiser

GM V6 & V8 S.B. DRY JOINT (2005 & UP)

Ref No. GLM No. OEM No. Description Qty.
1 01100 54-815504272 Clamps 8
2 89120 32-44348001 Exhaust Tube 1
3 89130 32-14358001 Exhaust Tube 1
4 51147•+- 864591T02 Dry Joint 14 Degree Riser/Elbow (2005 & Up) 1
5 22398•+- 10-865982057 Screw - 3/8-16x7-1/2 4
5 23245 10-865982071 Screw - 3/8-16x9-1/4 (For 1.7” Spacer Kits) 4
5 23246 10-865982077 Screw - 3/8-16x10-1/2 (For 3” Spacer Kits) 4
6 22379•+- 22-73379 Plug - 1/4-18 (Brass) 1
7 21896•+-*! 22-428611 Plug - 3/4-14 (Brass) 1
8 13984 22-866725 Straight Fitting 1
9 13960 N/A Elbow Fitting 1
10 37900•+ 27-864850A02 Gasket - “Restrictor” (Standard Cooling) 2
10 37920 27-864549A02 Gasket - “Block Off” (Closed Cooling) 2
11 37910 27-864547A02 Gasket - “Full Flow” 2
12 51237+! 865735A02 Dry Joint Manifold - V8 Small Block 1
13 31100+! 27-33395 Gasket 1
14 21896•+ 22-428611 Plug - 3/4-14 (Brass) 4
15 21745+*! 10-8M2000229 Screw - 3/8-16x4-3/4 (For V8 S.B. Manifold) 4
16 21745• 10-8M2000229 Screw - 3/8-16x4-3/4 (For V6 Manifold) 6
17 32170•* 27-99757 Gasket 1
18 51227•* 864612T01 Dry Joint Manifold - V6 1
19 13991 22-862210A01 90 Degree Hose Fitting 1
20 80140 25-45253 O-ring 1
21 13992 22-806608A02 Drain Plug Kit 1
22 13990•+*! 22-806926A1 Hose Fitting with Drain Plug Kit 1
23 23248 10-860008 Screw - 1/4-20x5/8 (Torx Head) 3
24 50017 863714T01 Bracket 1
25 23249 10-864378 Screw - 1/4-20x3/8 (Torx Head) 2
26 NSS N/A 1.7 Inch Dry Joint Spacer (Not Sold Separately) 1
27 NSS N/A 3 Inch Dry Joint Spacer (Not Sold Separately) 1
28 50170 865995A01 1.7 Inch Spacer Kit (Standard Cooling) 1
28 50172 865996A01 1.7 Inch Spacer Kit (Closed Cooling) 1
28 50370 864929A3 3 Inch Spacer Kit (Standard Cooling) 1
28 50372 864929A4 3 Inch Spacer Kit (Closed Cooling) 1
29 58227 N/A Complete Manifold Kit for V6 w/ 14 Degree Riser, (2005 & Up) 1
30 58237 N/A Complete Manifold Kit for V8 S.B. w/ 14 Degree Riser, (2005 & Up) 1

• Included in V6 Manifold Kit No. 58227
+ Included in V8 Manifold Kit No. 58237
- Included in Riser/Elbow No. 51147
* Included in V6 Manifold No. 51227
! Included in V8 Manifold No. 51237
