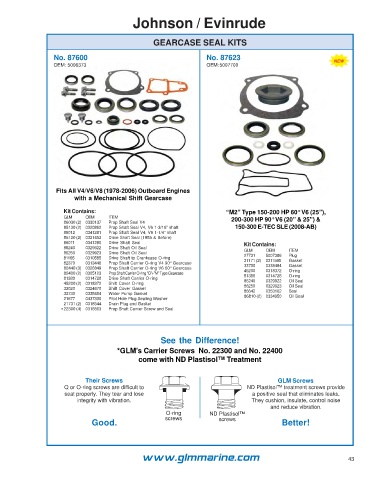

Page 43 - JohnEvin_Catalog_Flipbook

Johnson / Evinrude

GEARCASE SEAL KITS

No. 87600 No. 87623 NEW
OEM: 5006373 OEM: 5007700

Fits All V4/V6/V8 (1978-2006) Outboard Engines
with a Mechanical Shift Gearcase

Kit Contains: “M2” Type 150-200 HP 60° V6 (25”),
GLM OEM ITEM 200-300 HP 90° V6 (20” & 25”) &
86030 (2) 0330137 Prop Shaft Seal V4
85130 (2) 0320862 Prop Shaft Seal V4, V6 1-3/16” shaft 150-300 E-TEC SLE (2008-AB)
86012 0341281 Prop Shaft Seal V4, V6 1-1/4” shaft
85120 (2) 0321453 Drive Shaft Seal (1985 & Before)
86011 0341280 Drive Shaft Seal Kit Contains:
86240 0329922 Drive Shaft Oil Seal GLM OEM ITEM
86250 0329923 Drive Shaft Oil Seal 27731 5007386 Plug
81165 0310585 Drive Shaft to Crankcase O-ring 31171 (2) 0311598 Gasket
82370 0313446 Prop Shaft Carrier O-ring V4 90° Gearcase
82440 (3) 0326849 Prop Shaft Carrier O-ring V6 60° Gearcase 33730 0338484 Gasket
0318372
45200
O-ring
82400 (2) 0305123 Prop Shaft Carrier O-ring “O”+”M” Type Gearcase 81386 0314728 O-ring
81380 0314728 Drive Shaft Carrier O-ring 86240 0329922 Oil Seal
45200 (2) 0318372 Shift Cover O-ring 86250 0329923 Oil Seal
33020 0324670 Shift Cover Gasket
33730 0338484 Water Pump Gasket 86642 0353162 Seal
86810 (2) 0334950
Oil Seal
21677 0437330 Pitot Hole Plug Sealing Washer
21731 (2) 0318544 Drain Plug and Gasket
* 22300 (4) 0316563 Prop Shaft Carrier Screw and Seal
See the Difference!

*GLM’s Carrier Screws No. 22300 and No. 22400
come with ND Plastisol™ Treatment

Their Screws GLM Screws
Q or O-ring screws are difficult to ND Plastisol™ treatment screws provide
seat properly. They tear and lose a positive seal that eliminates leaks.
integrity with vibration. They cushion, insulate, control noise
and reduce vibration.
O-ring ND Plastisol™
Good. screws screws Better!

www.glmmarine.com 43
