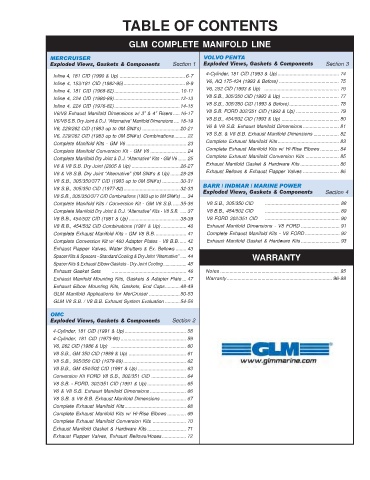

TABLE OF CONTENTS

GLM COMPLETE MANIFOLD LINE

MERCRUISER VOLVO PENTA
Exploded Views, Gaskets & Components Section 1 Exploded Views, Gaskets & Components Section 3

4-Cylinder, 181 CID (1993 & Up).............................................. 74
Inline 4, 181 CID (1990 & Up) ................................................. 6-7
Inline 4, 153/181 CID (1982-95).............................................. 8-9 V6, AQ 175-434 (1993 & Before) ............................................. 75
Inline 4, 181 CID (1968-82) ................................................. 10-11 V6, 262 CID (1993 & Up) ........................................................ 76
Inline 4, 224 CID (1980-89) .................................................12-13 V8 S.B., 305/350 CID (1993 & Up) ........................................... 77
Inline 4, 224 CID (1976-82) .................................................14-15 V8 S.B., 305/350 CID (1993 & Before) ..................................... 78
V8 S.B. FORD 302/351 CID (1993 & Up) ................................ 79
V6/V8 Exhaust Manifold Dimensions w/ 3” & 4” Risers .....16-17
V6/V8 S.B. Dry Joint & D.J. “Alternative” Manifold Dimensions .... 18-19 V8 B.B., 454/502 CID (1993 & Up) ........................................... 80
V6 & V8 S.B. Exhaust Manifold Dimensions ........................... 81
V6, 229/262 CID (1983 up to 0M SN#’s) ............................20-21
V8 S.B. & V8 B.B. Exhaust Manifold Dimensions ................... 82
V6, 229/262 CID (1983 up to 0M SN#’s) Combinations ......... 22
Complete Manifold Kits - GM V6 ............................................. 23 Complete Exhaust Manifold Kits.............................................. 83
Complete Exhaust Manifold Kits w/ Hi-Rise Elbows .............. 84
Complete Manifold Conversion Kit - GM V6 ........................... 24
Complete Manifold Dry Joint & D.J. “Alternative” Kits - GM V6 ....... 25 Complete Exhaust Manifold Conversion Kits ......................... 85
V6 & V8 S.B. Dry Joint (2005 & Up) ....................................26-27 Exhaust Manifold Gasket & Hardware Kits ............................. 86
V6 & V8 S.B. Dry Joint “Alternative” (0M SN#’s & Up) .......28-29 Exhaust Bellows & Exhaust Flapper Valves ........................... 86
V8 S.B., 305/350/377 CID (1983 up to 0M SN#’s) .............30-31
V8 S.B., 305/350 CID (1977-82)..........................................32-33 BARR / INDMAR / MARINE POWER Section 4
Exploded Views, Gaskets & Components
V8 S.B., 305/350/377 CID Combinations (1983 up to 0M SN#’s) .... 34
Complete Manifold Kits / Conversion Kit - GM V8 S.B. .....35-36 V8 S.B., 305/350 CID ........................................................ 88
Complete Manifold Dry Joint & D.J. “Alternative” Kits - V8 S.B. ..... 37 V8 B.B., 454/502 CID ........................................................ 89
V8 B.B., 454/502 CID (1981 & Up) ......................................38-39 V8 FORD 302/351 CID ........................................................ 90
V8 B.B., 454/502 CID Combinations (1981 & Up)................... 40 Exhaust Manifold Dimensions - V8 FORD ............................. 91
Complete Exhaust Manifold Kits - GM V8 B.B........................ 41 Complete Exhaust Manifold Kits - V8 FORD .......................... 92
Complete Conversion Kit w/ 460 Adapter Plates - V8 B.B...... 42 Exhaust Manifold Gasket & Hardware Kits ............................. 93
Exhaust Flapper Valves, Water Shutters & Ex. Bellows ........ 43
Spacer Kits & Spacers - Standard Cooling & Dry Joint “Alternative” ..... 44 WARRANTY
Spacer Kits & Exhaust Elbow Gaskets - Dry Joint Cooling ................... 45
Exhaust Gasket Sets ........................................................ 46 Notes ......................................................................................... 95
Exhaust Manifold Mounting Kits, Gaskets & Adapter Plate ... 47 Warranty ............................................................................... 96-98
Exhaust Elbow Mounting Kits, Gaskets, End Caps...........48-49
GLM Manifold Applications for MerCruiser .......................50-53
GLM V8 S.B. / V8 B.B. Exhaust System Evaluation ...........54-56
OMC
Exploded Views, Gaskets & Components Section 2

4-Cylinder, 181 CID (1991 & Up).............................................. 58
4-Cylinder, 181 CID (1973-90) ................................................. 59
V6, 262 CID (1986 & Up) ........................................................ 60
V8 S.B., GM 350 CID (1989 & Up) ........................................... 61
V8 S.B., 305/350 CID (1979-89)............................................... 62
V8 B.B., GM 454/502 CID (1991 & Up) .................................... 63
Conversion Kit FORD V8 S.B., 302/351 CID .......................... 64
V8 S.B. - FORD, 302/351 CID (1991 & Up) ............................. 65
V6 & V8 S.B. Exhaust Manifold Dimensions ........................... 66
V8 S.B. & V8 B.B. Exhaust Manifold Dimensions ................... 67
Complete Exhaust Manifold Kits.............................................. 68
Complete Exhaust Manifold Kits w/ Hi-Rise Elbows .............. 69
Complete Exhaust Manifold Conversion Kits ......................... 70
Exhaust Manifold Gasket & Hardware Kits ............................. 71
Exhaust Flapper Valves, Exhaust Bellows/Hoses .................. 72
