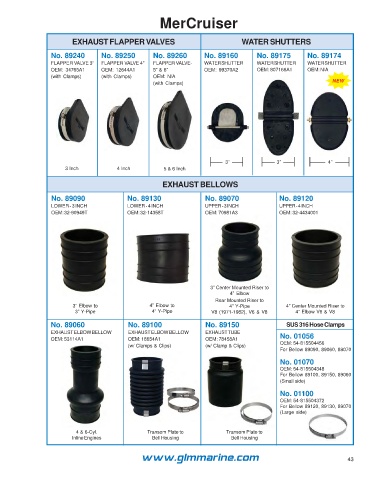

MerCruiser
EXHAUST FLAPPER VALVES WATER SHUTTERS
No. 89240 No. 89250 No. 89260 No. 89160 No. 89175 No. 89174
FLAPPER VALVE 3” FLAPPER VALVE 4” FLAPPER VALVE- WATER SHUTTER WATER SHUTTER WATER SHUTTER
OEM: 34765A1 OEM: 12644A1 5” & 6” OEM: 99370A2 OEM: 807166A1 OEM: N/A
(with Clamps) (with Clamps) OEM: N/A
(with Clamps) NEW
3” 3” 4”
3 Inch 4 Inch 5 & 6 Inch
EXHAUST BELLOWS
No. 89090 No. 89130 No. 89070 No. 89120
LOWER - 3 INCH LOWER - 4 INCH UPPER - 3 INCH UPPER - 4 INCH
OEM: 32-90949T OEM: 32-14358T OEM: 70981A3 OEM: 32-4434001
3” Center Mounted Riser to
4” Elbow
Rear Mounted Riser to
3” Elbow to 4” Elbow to 4” Y-Pipe 4” Center Mounted Riser to
3” Y-Pipe 4” Y-Pipe V8 (1971-1982), V6 & V8 4” Elbow V6 & V8
No. 89060 No. 89100 No. 89150 SUS 316 Hose Clamps
EXHAUST ELBOW BELLOW EXHAUST ELBOW BELLOW EXHAUST TUBE
OEM: 53114A1 OEM: 18654A1 OEM: 78458A1 No. 01056
(w/ Clamps & Clips) (w/ Clamp & Clips) OEM: 54-815504456
For Bellow 89090, 89060, 89070
No. 01070
OEM: 54-815504348
For Bellow 89100, 89150, 89060
(Small side)
No. 01100
OEM: 54-815504372
For Bellow 89120, 89130, 89070
(Large side)
4 & 6-Cyl. Transom Plate to Transom Plate to
Inline Engines Bell Housing Bell Housing
