P. 89
Barr / Indmar / Marine Power

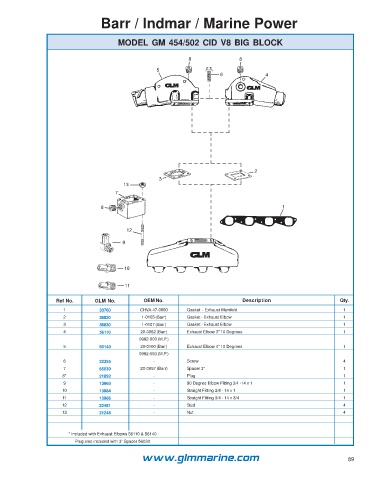

MODEL GM 454/502 CID V8 BIG BLOCK
Ref No. GLM No. OEM No. Description Qty.
1 33760 CHVA-47-0000 Gasket - Exhaust Manifold 1
2 36820 1-0105 (Barr) Gasket - Exhaust Elbow 1
3 36830 1-0107 (Barr) Gasket - Exhaust Elbow 1
4 56110 20-0082 (Barr) Exhaust Elbow 3" 10 Degrees 1
0992-000 (M.P.)
5 56140 20-0100 (Barr) Exhaust Elbow 4" 10 Degrees 1
0992-593 (M.P.)
6 22355 - Screw 4
7 56030 20-0097 (Barr) Spacer 3" 1
8* 21892 - Plug 1
9 13960 - 90 Degree Elbow Fitting 3/4 -14 x 1 1
10 13984 - Straight Fitting 3/4 - 14 x 1 1
11 13986 - Straight Fitting 3/4 - 14 x 3/4 1
12 22481 - Stud 4
13 21248 - Nut 4
* Included with Exhaust Elbows 56110 & 56140.
Plug also included with 3” Spacer 56030.
www.glmmarine.com 89
