MerCruiser

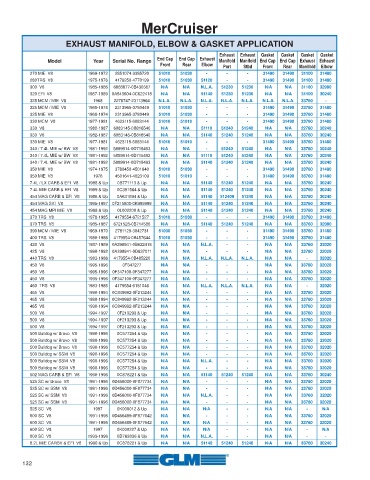

EXHAUST MANIFOLD, ELBOW & GASKET APPLICATION

Exhaust Exhaust Gasket Gasket Gasket Gasket
Model Year Serial No. Range End Cap End Cap Exhaust Manifold Manifold End Cap End Cap Exhaust Exhaust
Front Rear Elbow Port Stbd Front Rear Manifold Elbow
270 MIE V8 1969-1972 2851074-3385720 51010 51030 - - - 31490 31490 31100 31480
280TRS V8 1975-1976 4176250-4770199 51010 51030 51120 - - 31490 31490 31100 31480
300 V8 1985-1986 6668677-0B430367 N/A N/A N.L.A. 51230 51230 N/A N/A 31100 32080
320 EFI V8 1987-1989 0A543604-0C622418 N/A N/A 51140 51230 51230 N/A N/A 31100 30240
325 MCM / MIE V8 1968 2278747-23113964 N.L.A. N.L.A. N.L.A. N.L.A. N.L.A. N.L.A. N.L.A. 33760 -
325 MCM / MIE V8 1968-1974 2313965-3780449 51010 51030 - - - 31490 31490 33760 31480
325 MIE V8 1968-1974 2313965-3780449 51010 51030 - - - 31490 31490 33760 31480
330 MCM V8 1977-1981 4623115-6083144 51010 51010 - - - 31490 31490 33760 31480
330 V8 1982-1987 6083145-0B816540 N/A N/A 51110 51240 51240 N/A N/A 22760 30240
330 V8 1982-1987 6083145-0B816540 N/A N/A 51140 51240 51240 N/A N/A 33760 30240
330 MIE V8 1977-1981 4623115-6083144 51010 51010 - - - 31490 31490 33760 31480
340 / 7.4L MIE w/ BW V8 1981-1992 5889914-0D715493 N/A N/A - 51240 51240 N/A N/A 33760 30240
340 / 7.4L MIE w/ BW V8 1981-1992 5889914-0D715493 N/A N/A 51110 51240 51240 N/A N/A 33760 30240
340 / 7.4L MIE w/ BW V8 1981-1992 5889914-0D715493 N/A N/A 51140 51240 51240 N/A N/A 33760 30240
350 MIE V8 1974-1975 3780450-4501640 51010 51030 - - - 31490 31490 33760 31480
350 MIE V8 1976 4501641-4623109 51010 51010 - - - 31490 31490 33760 31480
7.4L / LX CARB & EFI V8 1988 & Up 0B771113 & Up N/A N/A 51140 51240 51240 N/A N/A 33760 30240
7.4L MIE CARB & EFI V8 1989 & Up 0C391564 & Up N/A N/A 51140 51240 51240 N/A N/A 33760 30240
454 MAG CARB & EFI V8 1986 & Up 0A631894 & Up N/A N/A 51140 512409 51240 N/A N/A 33760 30240
454 MAG SKI V8 1995-1997 0F215800-0K999999 N/A N/A 51140 51240 51240 N/A N/A 33760 30240
454 MAG MPI MIE V8 1998 & Up 0L002200 & Up N/A N/A 51140 51240 51240 N/A N/A 33760 30240
370 TRS V8 1978-1985 4179554-6721527 51010 51030 - - - 31490 31490 33760 31480
370 TRS V8 1985-1987 6721528-0B714586 N/A N/A 51140 51240 51240 N/A N/A 33760 32080
390 MCM / MIE V8 1969-1970 2781129-3042731 51030 51030 - - - 31490 31490 33760 31480
400 TRS V8 1980-1986 4179554-0B457644 51010 51030 - - - 31490 31490 33760 31480
420 V8 1987-1989 0A398941-0B622418 N/A N/A N.L.A. - - N/A N/A 33760 32020
425 V8 1990-1992 0A398941-0D937011 N/A N/A - - - N/A N/A 33760 32020
440 TRS V8 1983-1986 4179554-0B485220 N/A N/A N.L.A. N.L.A. N.L.A. N/A N/A - 32020
450 V8 1995-1996 0F347277 N/A N/A - - - N/A N/A 33760 32020
450 V8 1995-1996 0F347100-0F347277 N/A N/A - - - N/A N/A 33760 32020
450 V8 1995-1996 0F347100-0F347277 N/A N/A - - - N/A N/A 33760 32020
460 TRS V8 1983-1986 4179554-6181046 N/A N/A N.L.A. N.L.A. N.L.A. N/A N/A - 32020
465 V8 1990-1994 0C849992-0F213244 N/A N/A - - - N/A N/A 33760 32020
465 V8 1990-1994 0C849992-0F213244 N/A N/A - - - N/A N/A 33760 32020
465 V8 1990-1994 0C849992-0F213244 N/A N/A - - - N/A N/A 33760 32020
500 V8 1994-1997 0F213293 & Up N/A N/A - - - N/A N/A 33760 32020
500 V8 1994-1997 0F213293 & Up N/A N/A - - - N/A N/A 33760 32020
500 V8 1994-1997 0F213293 & Up N/A N/A - - - N/A N/A 33760 32020
500 Bulldog w/ Bravo V8 1990-1996 0C577254 & Up N/A N/A - - - N/A N/A 33760 32020
500 Bulldog w/ Bravo V8 1990-1996 0C577254 & Up N/A N/A - - - N/A N/A 33760 32020
500 Bulldog w/ Bravo V8 1990-1996 0C577254 & Up N/A N/A - - - N/A N/A 33760 32020
500 Bulldog w/ SSM V8 1990-1996 0C577254 & Up N/A N/A - - - N/A N/A 33760 32020
500 Bulldog w/ SSM V8 1990-1996 0C577254 & Up N/A N/A N.L.A. - - N/A N/A 33760 32020
500 Bulldog w/ SSM V8 1990-1996 0C577254 & Up N/A N/A - - - N/A N/A 33760 32020
502 MAG CARB & EFI V8 1990-1996 0C878221 & Up N/A N/A 51140 51240 51240 N/A N/A 33760 30240
525 SC w/ Bravo V8 1991-1996 0D456000-0F877734 N/A N/A - - - N/A N/A 33760 32020
525 SC w/ SSM V8 1991-1996 0D456000-0F877734 N/A N/A - - - N/A N/A 33760 32020
525 SC w/ SSM V8 1991-1996 0D456000-0F877734 N/A N/A N.L.A. - - N/A N/A 33760 32020
525 SC w/ SSM V8 1991-1996 0D456000-0F877734 N/A N/A - - - N/A N/A 33760 32020
525 SC V8 1997 0K000012 & Up N/A N/A N/A - - N/A N/A - N/A
600 SC V8 1991-1996 0D456489-0F877642 N/A N/A - - - N/A N/A 33760 32020
600 SC V8 1991-1996 0D456489-0F877642 N/A N/A N/A - - N/A N/A 33760 32020
600 SC V8 1997 0K000227 & Up N/A N/A N/A - - N/A N/A - N/A
800 SC V8 1993-1996 0D763836 & Up N/A N/A N.L.A. - - N/A N/A - -
8.2L MIE CARBV & EFI V8 1990 & Up 0C878221 & Up N/A N/A 51140 51240 51240 N/A N/A 33760 30240
