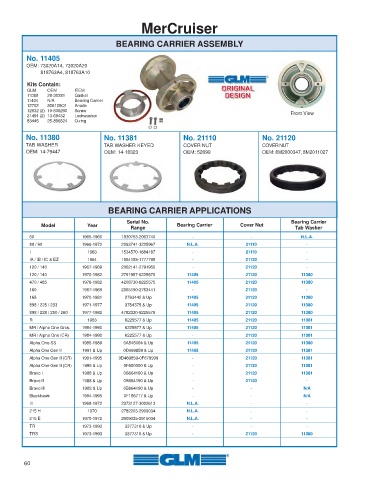

Page 60 - MerCruiser_Catalog_Flipbook

MerCruiser

BEARING CARRIER ASSEMBLY

No. 11405
OEM: 73020A14, 73020A20
818763A4, 818763A10

Kits Contain:
GLM OEM ITEM
11080 28-30281 Gasket
11404 N/A Bearing Carrier
12702 806105Q1 Anode
12832 (2) 10-806290 Screw Front View
21491 (2) 13-69432 Lockwasher
83445 25-896524 O-ring

No. 11380 No. 11381 No. 21110 No. 21120
TAB WASHER TAB WASHER KEYED COVER NUT COVER NUT
OEM: 14-79447 OEM: 14-18323 OEM: 52699 OEM: 8M2000347, 8M2011027

BEARING CARRIER APPLICATIONS

Serial No. Bearing Carrier
Model Year Range Bearing Carrier Cover Nut Tab Washer
60 1965-1966 1830753-2063740 - - N.L.A.
80 / 90 1966-1972 2063741-3225967 N.L.A. 21110 -
I 1963 1534570-1684187 - 21110 -
IA / IB / IC & EZ 1964 1684188-1777798 - 21120 -
120 / 140 1967-1969 2062141-2791956 - 21120 -
120 / 140 1970-1982 2791957-6225576 11405 21120 11380
470 / 485 1976-1982 4208730-6225575 11405 21120 11380
160 1967-1969 2065190-2763441 - 21120 -
165 1970-1981 2763442 & Up 11405 21120 11380
898 / 225 / 233 1971-1977 3784375 & Up 11405 21120 11380
898 / 228 / 250 / 260 1977-1982 4782330-6225576 11405 21120 11380
R 1983 6225577 & Up 11405 21120 11381
MR / Alpha One Grcs. 1984-1990 6225577 & Up 11405 21120 11381
MR / Alpha One (CR) 1984-1990 6225577 & Up - 21120 11381
Alpha One SS 1986-1989 0A545004 & Up 11405 21120 11380
Alpha One Gen II 1991 & Up 0D469859 & Up 11405 21120 11381
Alpha One Gen II (CR) 1991-1995 0D469859-0F679999 - 21120 11381
Alpha One Gen II (CR) 1996 & Up 0F680000 & Up - 21120 11381
Bravo I 1988 & Up 0B664190 & Up - 21120 11381
Bravo II 1988 & Up 0B664190 & Up - 21120 -
Bravo III 1988 & Up 0B664190 & Up - - N/A
Blackhawk 1994-1995 0F186717 & Up - - N/A
III 1968-1972 2373127-3002613 N.L.A. - -
215 H 1970 2782203-2909034 N.L.A. - -
215 E 1970-1972 2909035-2915034 N.L.A. - -
TR 1973-1993 3377316 & Up - - -
TRS 1973-1993 3377316 & Up - 21120 11380

60
