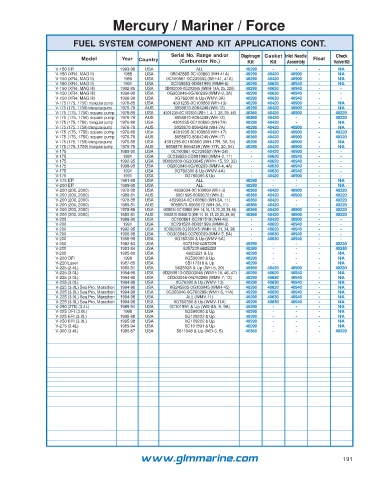

Page 191 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

FUEL SYSTEM COMPONENT AND KIT APPLICATIONS CONT.

Serial No. Range and/or Diaphragm Gasket Inlet Needle Check
Model Year Country (Carburetor No.) Kit Kit Assembly Float Valve Kit
V-150 EFI 1993-98 USA ALL 40290 - - - N/A
V-150 (XR4, MAG II) 1988 USA 0B242885-0C100860 (WH-41A) 40290 40420 40900 - N/A
V-150 (XR4, MAG II) 1989 USA 0C100861-0C239552 (WH-41, 41A) 40290 40420 40900 - N/A
V-150 (XR4, MAG II) 1991 USA 0C239553-0D081999 (WMH-6) 40290 40620 40940 - N/A
V-150 (XR4, MAG III) 1992-85 USA 0D082000-0G303045 (WMH-14A, 25, 32A) 40290 40620 40940 - -
V-150 (XR4, MAG III) 1996-98 USA 0G303046-0G760299 (WMV-3, 3A) 40290 40630 40940 - -
V-150 (XR4, MAG III) 1996-98 USA 0G762000 & Up (WMV-3A) 40290 40630 40940 - -
V-175 (175, 1750) triangular pump 1976-88 USA 4301235-0C100860 (WH-13) 40290 40420 40900 - N/A
V-175 (175, 1750) triangular pump 1976-79 AUS 8058870-8064249 (WH-13) 40290 40420 40900 - N/A
V-175 (175, 1750) square pump 1976-88 USA 4301235-0C100860 (WH-1, 4, 7, 28, 39, 46) 40360 40420 40900 - 40220
V-175 (175, 1750) square pump 1976-79 AUS 8058870-8064249 (WH-13) 40360 40420 - - 40220
V-175 (175, 1750) triangular pump 1976-88 USA 4301235-0C100860 (WH-7A) 40290 40420 - - N/A
V-175 (175, 1750) triangular pump 1976-79 AUS 8058870-8064249 (WH-7A) 40290 40420 40900 - N/A
V-175 (175, 1750) square pump 1976-88 USA 4301235-0C100860 (WH-17) 40360 40420 40900 - 40220
V-175 (175, 1750) square pump 1976-79 AUS 8058870-8064249 (WH-17) 40360 40420 40900 - 40220
V-175 (175, 1750) triangular pump 1976-88 USA 4301235-0C100860 (WH-17R, 30, 34) 40290 40420 40900 - N/A
V-175 (175, 1750) triangular pump 1976-79 AUS 8058870-8064249 (WH-17R, 30, 34) 40290 40420 40900 - N/A
V-175 1989-90 USA 0C100861-0C239552 (WH-34) - 40420 40900 - -
V-175 1991 USA 0C239553-0D081999 (WMH-2, 11) - 40620 40940 - -
V-175 1992-95 USA 0D082000-0G303045 (WMH-15, 22, 33) - 40620 40940 - -
V-175 1996-98 USA 0G303046-0G760299 (WMV-4, 4A) - 40630 40940 - -
V-175 1991 USA 0G760300 & Up (WMV-4A) - 40630 40940 - -
V-175 1991 USA 0G760300 & Up - 40420 40900 - -
V-175 EFI 1991-98 USA ALL 40290 - - - N/A
V-200 EFI 1989-98 USA ALL 40290 - - - N/A
V-200 (200, 2000) 1978-88 USA 4839034-0C100860 (WH-3) 40360 40420 40900 - 40220
V-200 (200, 2000) 1980-81 AUS 8061595-8065672 (WH-3) 40360 40420 40900 - 40220
V-200 (200, 2000) 1978-88 USA 4839034-0C100860 (WH-3A, 11) 40360 40420 - - 40220
V-200 (200, 2000) 1980-81 AUS 8058870-8065672 (WH-3A, 11) 40360 40420 - - 40220
V-200 (200, 2000) 1978-88 USA 4839034-0C100860 (WH-14, 16, 18, 20, 28, 39, 46) 40360 40420 40900 - 40220
V-200 (200, 2000) 1980-81 AUS 8058870-8065672 (WH-14, 16, 18, 20, 28, 39, 46) 40360 40420 40900 - 40220
V-200 1989-90 USA 0C100861-0C291519 (WH-46) - 40420 40900 - -
V-200 1991 USA 0C291520-0D081999 (WMH-3) - 40620 40940 - -
V-200 1992-95 USA 0D082000-0G303045 (WMH-16, 21, 34, 39) - 40620 40940 - -
V-200 1996-98 USA 0G303046-0G760299 (WMV-5, 5A) - 40630 40940 - -
V-200 1996-98 USA 0G760300 & Up (WMV-5A) - 40630 40940 - -
V-200 1982-83 USA 6073192-6357229 40390 - - - 40230
V-200 1983-84 USA 6357230-6625220 40380 - - - 40240
V-200 1985-88 USA 6625221 & Up 40290 - - - N/A
V-200 DFI 1998 USA 0G590000 & Up 40290 - - - N/A
V-220 Laser 1987-88 USA 0B117316 & Up 40290 - - - N/A
V-225 (2.4L) 1980-81 USA 5628028 & Up (WH-5, 20) 40390 40420 40900 - 40230
V-225 (3.0L) 1994-98 USA 0D280813-0G303045 (WMH-19, 46, 47) 40290 40620 40940 - N/A
V-225 (3.0L) 1994-98 USA 0G303046-0G760299 (WMV-7, 13) 40290 40630 40940 - N/A
V-225 (3.0L) 1994-98 USA 0G76300 & Up (WMV-13) 40290 40630 40940 - N/A
V-225 (3.0L) Sea Pro, Marathon 1994-98 USA 0G245605-0G303045 (WMH-45) 40290 40620 40940 - N/A
V-225 (3.0L) Sea Pro, Marathon 1994-98 USA 0G303046-0G760299 (WMH-6, 11A) 40290 40630 40940 - N/A
V-225 (3.0L) Sea Pro, Marathon 1994-98 USA ALL (WMV-11) 40290 40630 40940 - N/A
V-225 (3.0L) Sea Pro, Marathon 1994-98 USA 0G760300 & Up (WMV-11A) 40290 40630 40940 - N/A
V-250 (275) (3.4L) 1989-94 USA 0C101891 & Up (WD-8A, 9, 9A) 40290 - - - N/A
V-225 DFI (3.0L) 1998 USA 0G590000 & Up 40290 - - - N/A
V-225 EFI (3.0L) 1995-98 USA 0G129222 & Up 40290 - - - N/A
V-250 EFI (3.0L) 1995-98 USA 0G129222 & Up 40290 - - - N/A
V-275 (3.4L) 1989-94 USA 0C101891 & Up 40290 - - - N/A
V-300 (3.4L) 1980-87 USA 5611648 & Up (WD-3, 5) 40360 - - - 40220

www.glmmarine.com 191
