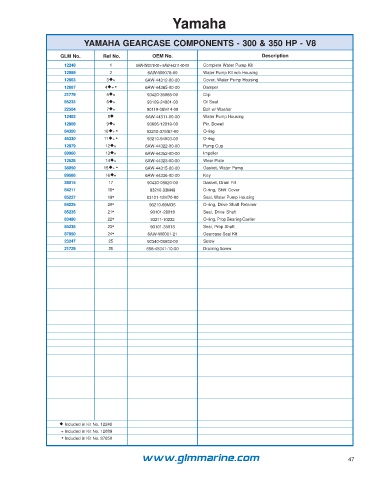

YAMAHA GEARCASE COMPONENTS - 300 & 350 HP - V8

GLM No. Ref No. OEM No. Description
12248 1 6AW-W0078-00 + 6AW-44311-00-00 Complete Water Pump Kit
12089 2 6AW-W0078-00 Water Pump Kit w/o Housing
12863 3+ 6AW-44312-00-00 Cover, Water Pump Housing
12867 4+ • 6AW-44365-00-00 Damper
21779 5+ 93420-35085-00 Clip
85233 6+ 93109-24001-00 Oil Seal
22504 7+ 90119-08M14-00 Bolt w/ Washer
12402 8 6AW-44311-00-00 Water Pump Housing
12808 9+ 93606-12019-00 Pin, Dowell
84300 10+ • 93210-37M67-00 O-ring
45330 11+ • 93210-94003-00 O-ring
12879 12+ 6AW-44322-00-00 Pump Cup
89960 13+ 6AW-44352-00-00 Impeller
12528 14+ 6AW-44323-00-00 Wear Plate
38050 15+ • 6AW-44315-00-00 Gasket, Water Pump
89586 16+ 6AW-44336-00-00 Key
38015 17 90430-08020-00 Gasket, Drain Fill
84211 18• 93210-33M49 O-ring, Shift Cover
85227 19• 93101-12M70-00 Seal, Water Pump Housing
84225 20• 93210-69MG6 O-ring, Drive Shaft Retainer
85235 21• 93101-28018 Seal, Drive Shaft
83480 22• 93211-10232 O-ring, Prop Bearing Carrier
85236 23• 93101-35018 Seal, Prop Shaft
87850 24• 6AW-W0001-21 Gearcase Seal Kit
23247 25 90340-08002-00 Screw
21729 26 688-45341-10-00 Draining Screw

 Included in Kit No. 12248
+ Included in Kit No. 12089
• Included in Kit No. 87850
