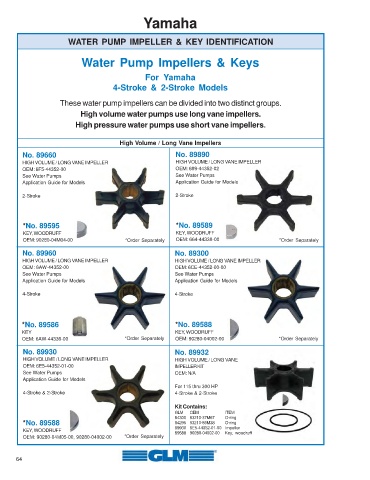

Page 64 - Yamaha_Catalog_Flipbook

Yamaha

WATER PUMP IMPELLER & KEY IDENTIFICATION

Water Pump Impellers & Keys

For Yamaha
4-Stroke & 2-Stroke Models

These water pump impellers can be divided into two distinct groups.

High volume water pumps use long vane impellers.
High pressure water pumps use short vane impellers.

High Volume / Long Vane Impellers
No. 89660 No. 89890
HIGH VOLUME / LONG VANE IMPELLER HIGH VOLUME / LONG VANE IMPELLER
OEM: 6F5-44352-00 OEM: 689-44352-02
See Water Pumps See Water Pumps
Application Guide for Models Application Guide for Models

2-Stroke 2-Stroke

*No. 89595 *No. 89589
KEY, WOODRUFF KEY, WOODRUFF
OEM: 90280-04M04-00 *Order Separately OEM: 664-44338-00 *Order Separately
No. 89960 No. 89300
HIGH VOLUME / LONG VANE IMPELLER HIGH VOLUME / LONG VANE IMPELLER
OEM: 6AW-44352-00 OEM: 6CE-44352-00-00
See Water Pumps See Water Pumps
Application Guide for Models Application Guide for Models

4-Stroke 4-Stroke

*No. 89586 *No. 89588
KEY KEY, WOODRUFF
OEM: 6AW-44336-00 *Order Separately OEM: 90280-04002-00 *Order Separately

No. 89930 No. 89932
HIGH VOLUME / LONG VANE IMPELLER HIGH VOLUME / LONG VANE
OEM: 6E5-44352-01-00 IMPELLER KIT
See Water Pumps OEM: N/A
Application Guide for Models
For 115 thru 300 HP
4-Stroke & 2-Stroke 4-Stroke & 2-Stroke

Kit Contains:
GLM OEM ITEM
84300 93210-37M67 O-ring
*No. 89588 84295 93210-86M38 O-ring
KEY, WOODRUFF 89930 6E5-44352-01-00 Impeller
89588 90280-04002-00
Key, woodruff
OEM: 90280-04M05-00, 90280-04002-00 *Order Separately

64
