Mercury / Mariner / Force

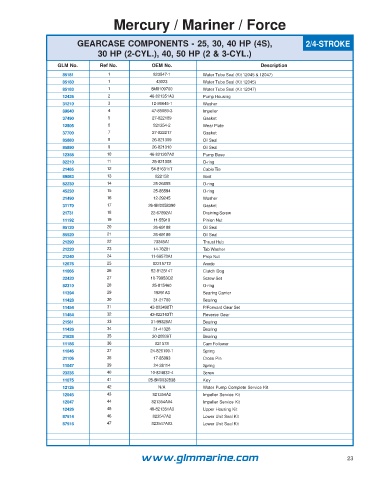

GEARCASE COMPONENTS - 25, 30, 40 HP (4S), 2/4-STROKE
30 HP (2-CYL.), 40, 50 HP (2 & 3-CYL.)

GLM No. Ref No. OEM No. Description
85181 1 823547-1 Water Tube Seal (Kit 12045 & 12047)
85180 1 43023 Water Tube Seal (Kit 12045)
85183 1 8M0109700 Water Tube Seal (Kit 12047)
12426 2 46-821351A3 Pump Housing
31210 3 12-86645-1 Washer
89640 4 47-85089-3 Impeller
37490 5 27-822189 Gasket
12505 6 821354-2 Wear Plate
37700 7 27-822217 Gasket
85880 8 26-821309 Oil Seal
85890 9 26-821310 Oil Seal
12358 10 46-821307A2 Pump Base
82210 11 25-821308 O-ring
21465 12 54-816311T Cable Tie
89083 13 822158 Boot
82230 14 25-26855 O-ring
45230 15 25-85594 O-ring
21490 16 12-29245 Washer
31170 17 26-8M0058390 Gasket
21731 18 22-67892A1 Draining Screw
11192 19 11-55910 Pinion Nut
85120 20 26-69188 Oil Seal
85520 21 26-69189 Oil Seal
21290 22 73345A1 Thrust Hub
21220 23 14-76281 Tab Washer
21240 24 11-69578A1 Prop Nut
12676 25 822157T2 Anode
11066 26 52-812314T Clutch Dog
22420 27 10-79953Q2 Screw Set
82310 28 25-815460 O-ring
11394 29 19291A3 Bearing Carrier
11428 30 31-21700 Bearing
11454 31 43-803498T1 P/Forward Gear Set
11464 32 43-822163T1 Reverse Gear
21581 33 31-99328A1 Bearing
11426 34 31-41326 Bearing
21628 35 30-20839T Bearing
11186 36 821578 Cam Follower
11046 37 24-826199-1 Spring
21106 38 17-85093 Cross Pin
11047 39 24-38114 Spring
23236 40 10-824832-4 Screw
11075 41 28-8M0032838 Key
12126 42 N/A Water Pump Complete Service Kit
12045 43 821354A2 Impeller Service Kit
12047 44 821354A04 Impeller Service Kit
12426 45 46-821351A3 Upper Housing Kit
87514 46 823547A2 Lower Unit Seal Kit
87516 47 823547A03 Lower Unit Seal Kit

www.glmmarine.com 23
