Mercury / Mariner / Force

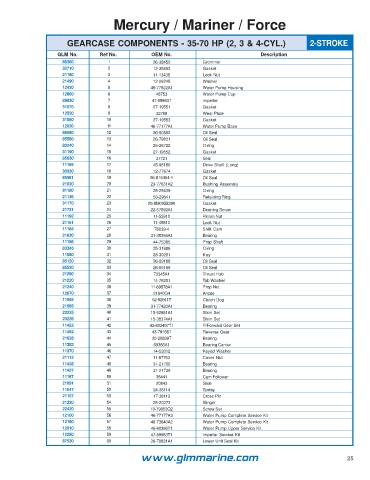

GEARCASE COMPONENTS - 35-70 HP (2, 3 & 4-CYL.) 2-STROKE

GLM No. Ref No. OEM No. Description
85360 1 26-38452 Grommet
32710 2 12-38453 Gasket
21180 3 11-13438 Lock Nut
21490 4 12-29245 Washer
12420 5 46-77822A1 Water Pump Housing
12860 6 48753 Water Pump Cup
89830 7 47-89983T Impeller
31070 8 27-19551 Gasket
12520 9 32768 Wear Plate
31060 10 27-19553 Gasket
12030 11 46-77177A1 Water Pump Base
85080 12 26-90562 Oil Seal
85580 13 26-79831 Oil Seal
82240 14 25-26722 O-ring
31190 15 27-19552 Gasket
85630 16 37721 Seal
11165 17 45-98180 Drive Shaft (Long)
30030 18 12-77674 Gasket
85581 19 26-816464-1 Oil Seal
21020 20 23-77631A2 Bushing Assembly
81180 21 25-25439 O-ring
21136 22 53-29641 Retaining Ring
31170 23 26-8M0058390 Gasket
21731 24 22-67892A1 Draining Screw
11192 25 11-55910 Pinion Nut
21161 26 11-45812 Lock Nut
11184 27 76039-4 Shift Cam
21630 28 31-38356A1 Bearing
11156 29 44-75365 Prop Shaft
83345 30 25-31986 O-ring
11080 31 28-30281 Key
85120 32 26-69188 Oil Seal
85520 33 26-69189 Oil Seal
21290 34 73345A1 Thrust Hub
21220 35 14-76281 Tab Washer
21240 36 11-69578A1 Prop Nut
12670 37 31640Q4 Anode
11065 38 52-92911T Clutch Dog
21585 39 31-77420A1 Bearing
23225 40 15-92881A1 Shim Set
23226 41 15-38374A1 Shim Set
11452 42 43-803497T1 P/Forward Gear Set
11462 43 43-79158T Reverse Gear
21628 44 30-20839T Bearing
11382 45 69386A1 Bearing Carrier
11370 46 14-53012 Keyed Washer
21112 47 11-87763 Cover Nut
11428 48 31-21700 Bearing
11427 49 31-21739 Bearing
11187 50 38441 Cam Follower
21091 51 20843 Slide
11047 52 24-38114 Spring
21107 53 17-38113 Cross Pin
21320 54 25-20273 Slinger
22420 55 10-79953Q2 Screw Set
12100 56 46-77177A3 Water Pump Complete Service Kit
12180 57 46-73640A2 Water Pump Complete Service Kit
12010 58 46-60366T1 Water Pump Upper Service Kit
12250 59 47-89983T1 Impeller Service Kit
87530 60 26-79831A1 Lower Unit Seal Kit

www.glmmarine.com 25
