P. 5

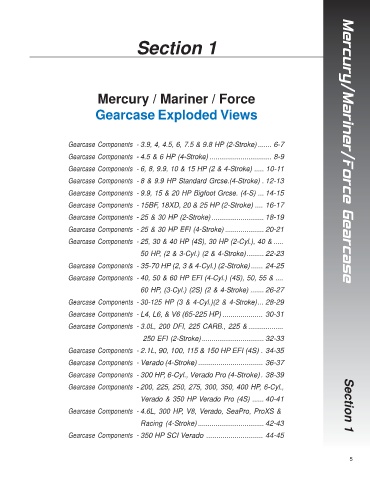

Section 1









                                 Mercury / Mariner / Force

                                 Gearcase Exploded Views





                        Gearcase Components - 3.9, 4, 4.5, 6, 7.5 & 9.8 HP (2-Stroke) ....... 6-7

                        Gearcase Components - 4.5 & 6 HP (4-Stroke) ................................ 8-9          Mercury/Mariner/Force Gearcase
                        Gearcase Components - 6, 8, 9.9, 10 & 15 HP (2 & 4-Stroke) ..... 10-11
                        Gearcase Components - 8 & 9.9 HP Standard Grcse.(4-Stroke) . 12-13

                        Gearcase Components - 9.9, 15 & 20 HP Bigfoot Grcse. (4-S) ... 14-15

                        Gearcase Components  - 18XD, 20 & 25 HP (2-Stroke) .............. 16-17
                        Gearcase Components - 25 & 30 HP (2-Stroke) ........................... 18-19
                        Gearcase Components - 25 & 30 HP EFI (4-Stroke) .................... 20-21

                        Gearcase Components - 25, 30 & 40 HP (4S), 30 HP (2-Cyl.), 40 & .....

                                               50 HP, (2 & 3-Cyl.) (2 & 4-Stroke)......... 22-23
                        Gearcase Components  - 35-70 HP (2, 3 & 4-Cyl.) (2-Stroke)...... 24-25
                        Gearcase Components - 40, 50 & 60 HP EFI (4-Cyl.) (4S), 50, 55 & ....

                                               60 HP, (3-Cyl.) (2S) (2 & 4-Stroke) ....... 26-27

                        Gearcase Components  - 30-125 HP (3 & 4-Cyl.)(2 & 4-Stroke)... 28-29
                        Gearcase Components  - L4, L6, & V6 (65-225 HP) .................... 30-31
                        Gearcase Components - 3.0L, 200 DFI, 225 CARB., 225 & ..................

                                                250 EFI (2-Stroke)................................ 32-33

                        Gearcase Components  - 2.1L, 90, 100, 115 & 150 HP EFI (4S) . 34-35
                        Gearcase Components - Verado (4-Stroke) ................................ 36-37
                        Gearcase Components  - 300 HP, 6-Cyl., Verado Pro (4-Stroke). 38-39

                        Gearcase Components - 200, 225, 250, 275, 300, 350, 400 HP, 6-Cyl.,

                                               Verado & 350 HP Verado Pro (4S) ...... 40-41
                        Gearcase Components - 4.6L, 300 HP, V8, Verado, SeaPro, ProXS &                            Section 1
                                               Racing (4-Stroke) .................................. 42-43

                        Gearcase Components - 350 HP SCI Verado ............................ 44-45



                                                                                                                     5
