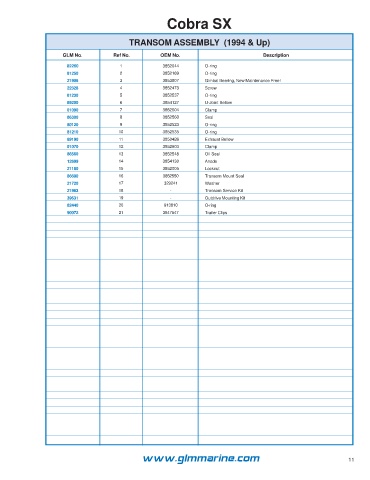

Cobra SX



                                            TRANSOM ASSEMBLY  (1994 & Up)

                      GLM No.          Ref No.        OEM No.                           Description
                       82260             1             3852044       O-ring
                       81250             2             3852169       O-ring
                       21906             3             3853807       Gimbal Bearing, New Maintenance Free!
                       22328             4             3852473       Screw
                       81230             5             3852537       O-ring
                       89200             6             3854127       U-Joint Bellow
                       01090             7             3852604       Clamp
                       86300             8             3852560       Seal
                       80120             9             3852523       O-ring
                       81210            10             3852535       O-ring
                       89190            11             3850426       Exhaust Bellow
                       01070            12             3852603       Clamp
                       86560            13             3852548       Oil Seal
                       12699            14             3854130       Anode
                       21180            15             3852005       Locknut
                       86690            16             3852550       Transom Mount Seal
                       21720            17             329241        Washer
                       21963            18               -           Transom Service Kit
                       39631            19               -           Outdrive Mounting Kit
                       82440            20             913810        O-ring
                       90072            21             3847547       Trailer Clips
