Johnson / Evinrude

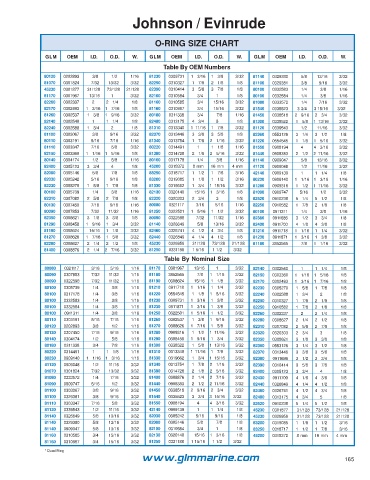

O-RING SIZE CHART

GLM OEM I.D. O.D. W. GLM OEM I.D. O.D. W. GLM OEM I.D. O.D. W.
Table By OEM Numbers
80120 0202893 3/8 1/2 1/16 81230 0309731 1 3/16 1 3/8 3/32 81140 0329380 5/8 13/16 3/32
81070 0301824 7/32 13/32 3/32 82250 0310327 1 7/8 2 1/8 1/8 81100 0329381 3/8 9/16 3/32
45230 0301877 31/128 73/128 21/128 82390 0310414 3 5/8 3 7/8 1/8 80100 0332583 1/4 3/8 1/16
81170 0301967 13/16 1 3/32 82100 0310584 3/4 1 1/8 80100 0332584 1/4 3/8 1/16
82260 0302337 2 2 1/4 1/8 81160 0310585 3/4 15/16 3/32 81080 0333572 1/4 7/16 3/32
82170 0302493 1 3/16 1 7/16 1/8 81160 0310967 3/4 15/16 3/32 81540 0335523 3 3/4 3 15/16 3/32
81260 0302537 1 3/8 1 9/16 3/32 80180 0311338 3/4 7/8 1/16 81450 0338518 2 9/16 2 3/4 3/32
82140 0302540 1 1 1/4 1/8 82480 0313175 4 3/4 5 1/8 81300 0338522 1 5/8 1 13/16 3/32
82240 0302588 1 3/4 2 1/8 81310 0313340 1 11/16 1 7/8 3/32 81120 0339543 1/2 11/16 3/32
81100 0303067 3/8 9/16 3/32 82370 0313446 3 3/8 3 5/8 1/8 82360 0553126 3 1/4 3 1/2 1/8
80110 0303191 5/16 7/16 1/16 81340 0313754 1 7/8 2 1/16 3/32 81220 0554545 1 1/8 1 5/16 3/32
81110 0303347 7/16 5/8 3/32 80220 0314491 1 1 1/8 1/16 81550 0908194 4 4 3/16 3/32
82150 0303360 1 1/16 1 5/16 1/8 81380 0314728 2 1/8 2 5/16 3/32 81440 0908383 2 1/2 2 11/16 3/32
80140 0304174 1/2 5/8 1/16 80100 0317178 1/4 3/8 1/16 81140 0909047 5/8 13/16 3/32
82400 0305123 3 3/4 4 1/8 45200 0318372 8 mm 16 mm 4 mm 41120 0909048 1/2 11/16 3/32
82080 0305146 5/8 7/8 1/8 83250 0318717 1 1/2 1 7/8 3/16 42140 0909139 1 1 1/4 1/8
82030 0305242 5/16 9/16 1/8 83200 0319085 1 1/8 1 1/2 3/16 80230 0909140 1 1/16 1 3/16 1/16
82230 0305270 1 5/8 1 7/8 1/8 81330 0319662 1 3/4 1 15/16 3/32 81280 0909316 1 1/2 1 11/16 3/32
80100 0305739 1/4 3/8 1/16 82130 0320140 15/16 1 3/16 1/8 81090 0909747 5/16 1/2 3/32
82310 0307082 2 5/8 2 7/8 1/8 82320 0320303 2 3/4 3 1/8 82520 0910238 5 1/4 5 1/2 1/8
80130 0307450 7/16 9/16 1/16 80080 0321117 3/16 5/16 1/16 82250 0910582 1 7/8 2 1/8 1/8
80090 0307853 7/32 11/32 1/16 81250 0322501 1 5/16 1 1/2 3/32 80100 0911311 1/4 3/8 1/16
82350 0308621 3 1/8 3 3/8 1/8 80090 0322598 7/32 11/32 1/16 82380 0911686 3 1/2 3 3/4 1/8
81290 0308458 1 9/16 1 3/4 3/32 81140 0326649 5/8 13/16 3/32 82430 0911700 4 1/8 4 3/8 1/8
81190 0308624 15/16 1 1/8 3/32 82460 0326741 4 1/2 4 3/4 1/8 81210 0911718 1 1/16 1 1/4 3/32
81270 0308626 1 7/16 1 5/8 3/32 82440 0326849 4 1/4 4 1/2 1/8 81230 0911871 1 3/16 1 3/8 3/32
82280 0308627 2 1/4 2 1/2 1/8 45230 0326956 31/128 73/128 21/128 81180 3852565 7/8 1 1/16 3/32
81400 0308876 2 1/4 2 7/16 3/32 81250 0331188 1 5/16 1 1/2 3/32
Table By Nominal Size
80080 0321117 3/16 5/16 1/16 81170 0301967 13/16 1 3/32 82140 0302540 1 1 1/4 1/8
80090 0307853 7/32 11/32 1/16 81180 3852565 7/8 1 1/16 3/32 82150 0303360 1 1/16 1 5/16 1/8
80090 0322598 7/32 11/32 1/16 81190 0308624 15/16 1 1/8 3/32 82170 0302493 1 3/16 1 7/16 1/8
80100 0305739 1/4 3/8 1/16 81210 0911718 1 1/16 1 1/4 3/32 82230 0305270 1 5/8 1 7/8 1/8
80100 0317178 1/4 3/8 1/16 81220 0554545 1 1/8 1 5/16 3/32 82240 0302588 1 3/4 2 1/8
80100 0332583 1/4 3/8 1/16 81230 0309731 1 3/16 1 3/8 3/32 82250 0310327 1 7/8 2 1/8 1/8
80100 0332584 1/4 3/8 1/16 81230 0911871 1 3/16 1 3/8 3/32 82250 0910582 1 7/8 2 1/8 1/8
80100 0911311 1/4 3/8 1/16 81250 0322501 1 5/16 1 1/2 3/32 82260 0302337 2 2 1/4 1/8
80110 0303191 5/16 7/16 1/16 81260 0302537 1 3/8 1 9/16 3/32 82280 0308627 2 1/4 2 1/2 1/8
80120 0202893 3/8 1/2 1/16 81270 0308626 1 7/16 1 5/8 3/32 82310 0307082 2 5/8 2 7/8 1/8
80130 0307450 7/16 9/16 1/16 81280 0909316 1 1/2 1 11/16 3/32 82320 0320303 2 3/4 3 1/8
80140 0304174 1/2 5/8 1/16 81290 0308458 1 9/16 1 3/4 3/32 82350 0308621 3 1/8 3 3/8 1/8
80180 0311338 3/4 7/8 1/16 81300 0338522 1 5/8 1 13/16 3/32 82360 0553126 3 1/4 3 1/2 1/8
80220 0314491 1 1 1/8 1/16 81310 0313340 1 11/16 1 7/8 3/32 82370 0313446 3 3/8 3 5/8 1/8
80230 0909140 1 1/16 1 3/16 1/16 81330 0319662 1 3/4 1 15/16 3/32 82380 0911686 3 1/2 3 3/4 1/8
41120 0909048 1/2 11/16 3/32 81340 0313754 1 7/8 2 1/16 3/32 82390 0310414 3 5/8 3 7/8 1/8
81070 0301824 7/32 13/32 3/32 81380 0314728 2 1/8 2 5/16 3/32 82400 0305123 3 3/4 4 1/8
81080 0333572 1/4 7/16 3/32 81400 0308876 2 1/4 2 7/16 3/32 82430 0911700 4 1/8 4 3/8 1/8
81090 0909747 5/16 1/2 3/32 81440 0908383 2 1/2 2 11/16 3/32 82440 0326849 4 1/4 4 1/2 1/8
81100 0303067 3/8 9/16 3/32 81450 0338518 2 9/16 2 3/4 3/32 82460 0326741 4 1/2 4 3/4 1/8
81100 0329381 3/8 9/16 3/32 81540 0335523 3 3/4 3 15/16 3/32 82480 0313175 4 3/4 5 1/8
81110 0303347 7/16 5/8 3/32 81550 0908194 4 4 3/16 3/32 82520 0910238 5 1/4 5 1/2 1/8
81120 0339543 1/2 11/16 3/32 42140 0909139 1 1 1/4 1/8 45230 0301877 31/128 73/128 21/128
81140 0326649 5/8 13/16 3/32 82030 0305242 5/16 9/16 1/8 45230 0326956 31/128 73/128 21/128
81140 0329380 5/8 13/16 3/32 82080 0305146 5/8 7/8 1/8 83200 0319085 1 1/8 1 1/2 3/16
81140 0909047 5/8 13/16 3/32 82100 0310584 3/4 1 1/8 83250 0318717 1 1/2 1 7/8 3/16
81160 0310585 3/4 15/16 3/32 82130 0320140 15/16 1 3/16 1/8 45200 0318372 8 mm 16 mm 4 mm
81160 0310967 3/4 15/16 3/32 81250 0331188 1 15/16 1 1/2 3/32
* Quad Ring
