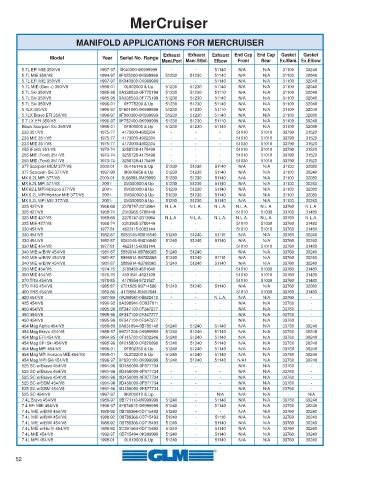

Page 52 - Manifold_Catalog_Flipbook

MerCruiser

MANIFOLD APPLICATIONS FOR MERCRUISER

Exhaust Exhaust Exhaust End Cap End Cap Gasket Gasket
Model Year Serial No. Range
Mani.Port Mani.Stbd. Elbow Front Rear Ex.Mani. Ex.Elbow
5.7L EFI MIE 350/V8 1997-97 0K40300-0K999999 - - 51140 N/A N/A 31100 30240
5.7L MIE 350/V8 1994-97 0F025000-0K999999 51230 51230 51140 N/A N/A 31100 32040
5.7L EFI MIE 350/V8 1997-97 0K040300-0K999999 - - 51140 N/A N/A 31100 32040
5.7L MIE (Gen +) 350/V8 1998-01 0L002003 & Up 51230 51230 51140 N/A N/A 31100 32040
5.7L Ski 350/V8 1985-95 0A338533-0F775199 51230 51230 51110 N/A N/A 31100 32040
5.7L Ski 350/V8 1985-95 0A338533-0F775199 51230 51230 51140 N/A N/A 31100 32040
5.7L Ski 350/V8 1996-01 0F775200 & Up 51230 51230 51140 N/A N/A 31100 32040
5.7LX 350/V8 1996-97 0F601000-0K999999 51230 51230 51110 N/A N/A 31100 32040
5.7LX Bravo EFI 350/V8 1996-97 0F800300-0K999999 51230 51230 51140 N/A N/A 31100 32080
5.7 LX EFI 350/V8 1996-97 0F752400-0K999999 51230 51230 51110 N/A N/A 31100 30240
Black Scorpion Ski 350/V8 1996-01 0F800000 & Up 51230 51230 51140 N/A N/A 31100 32080
233 351/V8 1975-77 4173000-4902304 - - - 51010 51010 33790 31520
233 MIE 351/V8 1975-77 4173000-4902304 - - - 51010 51010 33790 31520
233 MIE 351/V8 1975-77 4173000-4902304 - - - 51030 51010 33790 31520
255 (Ford) 351/V8 1973-74 3258728-4175499 - - - 51010 51010 33790 31520
255 MIE (Ford) 351/V8 1973-74 3258728-4175499 - - - 51010 51010 33790 31520
255 MIE (Ford) 351/V8 1973-74 3258728-4175499 - - - 51030 51010 33790 31520
377 Scorpion MCM 377/V8 2000-01 0L416146 & Up 51230 51230 51140 N/A N/A 31100 32080
377 Scorpion Ski 377/V8 1997-98 0K000656 & Up 51230 51230 51140 N/A N/A 31100 30240
MX 6.2L MPI 377/V8 2000-01 0L68003-0M29999 51230 51230 51140 N/A N/A 31100 32080
MX 6.2L MPI 377/V8 2001- 0M300000 & Up 51230 51230 51140 N/A N/A 31100 30240
MX 62.L MPI Horizon 377/V8 2001- 0M300000 & Up 51230 51230 51140 N/A N/A 31100 32080
MX 6.2L MPI Horizon MIE 377/V8 2001- 0M300000 & Up 51230 51230 51140 N/A N/A 31100 32080
MX 6.2L MPI MIE 377/V8 2001- 0M300000 & Up 51230 51230 51140 N/A N/A 31100 30240
325 427/V8 1968-68 2278747-2313964 N.L.A. N.L.A. N.L.A. N.L.A. N.L.A. 33760 N.L.A.
325 427/V8 1968-74 2313965-3780449 - - - 51010 51030 33760 31480
325 MIE 437/V8 1968-68 2278747-2313964 N.L.A. N.L.A. N.L.A. N.L.A. N.L.A. 33760 N.L.A.
325 MIE 427/V8 1968-74 2313965-3780449 - - - 51010 51030 33760 31480
330 454/V8 1977-81 4623115-6083144 - - - 51010 51010 33760 31480
330 454/V8 1982-87 6083145-0B816540 51240 51240 51110 N/A N/A 33760 30240
330 454/V8 1982-87 6083145-0B816540 51240 51240 51140 N/A N/A 33760 30240
330 MIE 454/V8 1977-81 4623115-6083144 - - - 51010 51010 33760 31480
340 MIE w/B/W 454/V8 1981-87 5889914-0B788365 51240 51240 - N/A N/A 33760 30240
340 MIE w/B/W 454/V8 1981-87 5889914-0B788365 51240 51240 51110 N/A N/A 33760 30240
340 MIE w/B/W 454/V8 1981-87 5889914-0B788365 51240 51240 51140 N/A N/A 33760 30240
350 MIE 454/V8 1974-75 3780450-4501640 - - - 51010 51030 33760 31480
350 MIE 454/V8 1976-76 4501641-4623109 - - - 51010 51010 33760 31480
370 TRS 454/V8 1978-85 4179554-6721527 - - - 51010 51030 33760 31480
370 TRS 454/V8 1985-87 6721528-0B714586 51240 51240 51140 N/A N/A 33760 32080
400 TRS 454/V8 1980-86 4179554-0B457644 - - - 51010 51030 33760 31480
420 454/V8 1987-89 0A398941-0B622418 - - N.L.A. N/A N/A 33760 -
425 454/V8 1990-92 0A398941-0D937011 - - - N/A N/A 33760 -
450 454/V8 1995-96 0F347100-0F347277 - - - N/A N/A 33760 -
450 454/V8 1995-96 0F347100-0F347277 - - - N/A N/A 33760 -
450 454/V8 1995-96 0F347100-0F347277 - - - N/A N/A 33760 -
454 Mag Alpha 454/V8 1986-88 0A631894-0B785148 51240 51240 51140 N/A N/A 33760 30240
454 Mag Bravo 454/V8 1988-97 0B721206-0K999999 51240 51240 51140 N/A N/A 33760 30240
454 Mag EFI 454/V8 1994-95 0F115700-0F802349 51240 51240 51140 N/A N/A 33760 30240
454 Mag EFI Ski 454/V8 1995-96 0F215800-0F820099 51240 51240 51140 N/A N/A 33760 30240
454 Mag MPI 454/V8 1996-01 0F802350 & Up 51240 51240 51140 N/A N/A 33760 30240
454 Mag MPI Horizon MIE 454/V8 1998-01 0L002200 & Up 51240 51240 51140 N/A N/A 33760 30240
454 Mag MPI Ski 454/V8 1996-97 0F820100-0K999999 51240 51240 51140 N/A1 N/A 33760 30240
525 SC w/Bravo 454/V8 1991-96 0D456000-0F877734 - - - N/A N/A 33760 -
525 SC w/Bravo 454/V8 1991-96 0D456000-0F877734 - - - N/A N/A 33760 -
525 SC w/Bravo 454/V8 1991-96 0D456000-0F877734 - - - N/A N/A 33760 -
525 SC w/SSM 454/V8 1991-96 0D456000-0F877734 - - - N/A N/A 33760 -
525 SC w/SSM 454/V8 1991-96 0D456000-0F877734 - - - N/A N/A 33760 -
525 SC 454/V8 1997-97 0K000012 & Up - - N/A N/A N/A - N/A
7.4L Bravo 454/V8 1988-97 0B771113-0K999999 51240 - 51140 N/A N/A 33760 30240
7.4 EFI MIE 454/V8 1996-97 0F874815-0K999999 51240 - 51140 N/A N/A 33760 30240
7.4L MIE w/B/W 454/V8 1988-92 0B788366-0D715493 51240 - - N/A N/A 33760 30240
7.4L MIE w/B/W 454/V8 1988-92 0B788366-0D715493 51240 - 51110 N/A N/A 33760 30240
7.4L MIE w/B/W 454/V8 1988-92 0B788366-0D715493 51240 - 51140 N/A N/A 33760 30240
7.4L MIE w/Hurth 454/V8 1989-92 0C391564-0D715493 51240 - 51140 N/A N/A 33760 30240
7.4L MIE 454/V8 1992-97 0D715494-0K999999 51240 - 51140 N/A N/A 33760 30240
7.4L MPI 454/V8 1998-01 0L010003 & Up 51240 - 51140 N/A N/A 33760 30240

52
