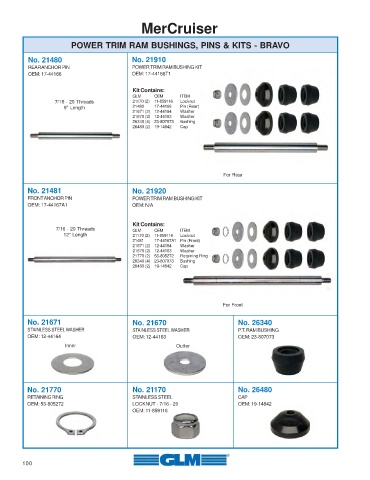

MerCruiser

POWER TRIM RAM BUSHINGS, PINS & KITS - BRAVO

No. 21480 No. 21910
REAR ANCHOR PIN POWER TRIM RAM BUSHING KIT
OEM: 17-44166 OEM: 17-44166T1

Kit Contains:
GLM OEM ITEM
7/16 - 20 Threads 21170 (2) 11-859116 Locknut
9” Length 21480 17-44166 Pin (Rear)
21671 (2) 12-44164 Washer
21670 (2) 12-44163 Washer
26340 (4) 23-807073 Bushing
26480 (2) 19-14842 Cap

For Rear
No. 21481 No. 21920
FRONT ANCHOR PIN POWER TRIM RAM BUSHING KIT
OEM: 17-44167A1 OEM: N/A

Kit Contains:
7/16 - 20 Threads GLM OEM ITEM
12” Length 21170 (2) 11-859116 Locknut
21481 17-44167A1 Pin (Front)
21671 (2) 12-44164 Washer
21670 (2) 12-44163 Washer
21770 (2) 53-805272 Retaining Ring
26340 (4) 23-807073 Bushing
26480 (2) 19-14842 Cap

For Front

No. 21671 No. 21670 No. 26340
STAINLESS STEEL WASHER STAINLESS STEEL WASHER P.T. RAM BUSHING
OEM: 12-44164 OEM: 12-44163 OEM: 23-807073
Inner Outter

No. 21770 No. 21170 No. 26480
RETAINING RING STAINLESS STEEL CAP
OEM: 53-805272 LOCKNUT - 7/16 - 20 OEM: 19-14842
OEM: 11-859116

100
