MerCruiser

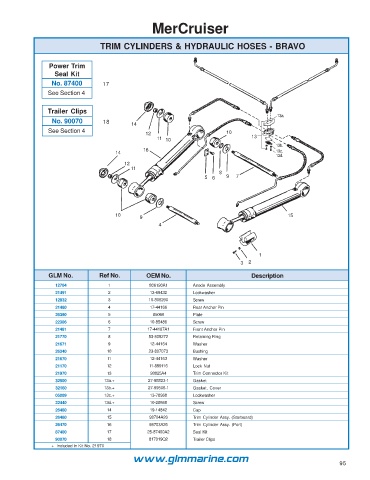

TRIM CYLINDERS & HYDRAULIC HOSES - BRAVO

Power Trim
Seal Kit
No. 87400 17
See Section 4

Trailer Clips
13a.
No. 90070 18 14
See Section 4
12 10
11 10 13
13b.
16
14 13c.
13d.
12
11
8
5 6 9 7

10 9 15
4

1
3 2
GLM No. Ref No. OEM No. Description
12704 1 806190A1 Anode Assembly
21491 2 13-69432 Lockwasher
12832 3 10-806290 Screw
21480 4 17-44166 Rear Anchor Pin
26390 5 85060 Plate
22306 6 10-85486 Screw
21481 7 17-44167A1 Front Anchor Pin
21770 8 53-805272 Retaining Ring
21671 9 12-44164 Washer
26340 10 23-807073 Bushing
21670 11 12-44163 Washer
21170 12 11-859116 Lock Nut
21970 13 98825A4 Trim Connector Kit
32500 13a.+ 27-98823-1 Gasket
32160 13b.+ 27-99506-1 Gasket, Cover
05009 13c.+ 13-78968 Lockwasher
22440 13d.+ 10-28668 Screw
26480 14 19-14842 Cap
26460 15 98704A26 Trim Cylinder Assy. (Starboard)
26470 16 98703A26 Trim Cylinder Assy. (Port)
87400 17 25-87400A2 Seal Kit
90070 18 817019Q2 Trailer Clips
+ Included in Kit No. 21970
