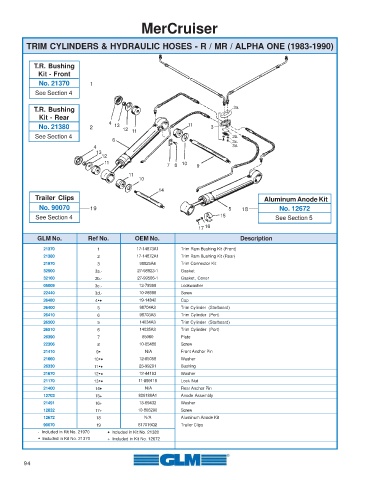

TRIM CYLINDERS & HYDRAULIC HOSES - R / MR / ALPHA ONE (1983-1990)

T.R. Bushing
Kit - Front
No. 21370 1
See Section 4

T.R. Bushing 3a.
Kit - Rear
No. 21380 2 4 13 12 11 3
See Section 4 11 3b.
6 3c.
4 3d.
13
12
11 10
7 8 9
11
10
14
Trailer Clips Aluminum Anode Kit
No. 90070 19 5 18 No. 12672
See Section 4 15 See Section 5
17 16
GLM No. Ref No. OEM No. Description

21370 1 17-14873A1 Trim Ram Bushing Kit (Front)
21380 2 17-14872A1 Trim Ram Bushing Kit (Rear)
21970 3 98825A4 Trim Connector Kit
32500 3a.- 27-98823-1 Gasket
32160 3b.- 27-99506-1 Gasket, Cover
05009 3c.- 13-78968 Lockwasher
22440 3d.- 10-28668 Screw
26480 4   19-14842 Cap
26400 5 98704A3 Trim Cylinder (Starboard)
26410 6 98703A3 Trim Cylinder (Port)
26500 5 14034A3 Trim Cylinder (Starboard)
26510 6 14035A3 Trim Cylinder (Port)
26390 7 85060 Plate
22306 8 10-85486 Screw
21410 9  N/A Front Anchor Pin
21660 10   12-85058 Washer
26330 11   23-99291 Bushing
21670 12   12-44163 Washer
21170 13   11-859116 Lock Nut
21400 14  N/A Rear Anchor Pin
12703 15+ 806189A1 Anode Assembly
21491 16+ 13-69432 Washer
12832 17+ 10-806290 Screw
12672 18 N/A Aluminum Anode Kit
90070 19 817019Q2 Trailer Clips
- Included in Kit No. 21970  Included in Kit No. 21380
 Included in Kit No. 21370 + Included in Kit No. 12672
