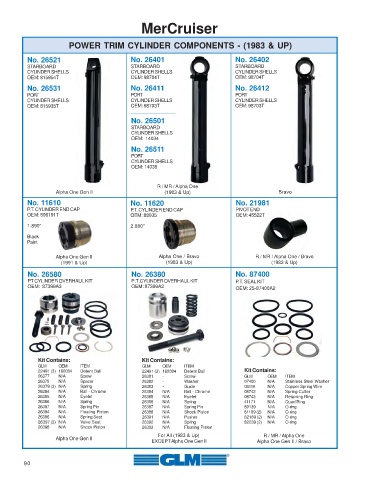

POWER TRIM CYLINDER COMPONENTS - (1983 & UP)

No. 26521 No. 26401 No. 26402
STARBOARD STARBOARD STARBOARD
CYLINDER SHELLS CYLINDER SHELLS CYLINDER SHELLS
OEM: 815954T OEM: 98704T OEM: 98704T
No. 26531 No. 26411 No. 26412
PORT PORT PORT
CYLINDER SHELLS CYLINDER SHELLS CYLINDER SHELLS
OEM: 815935T OEM: 98703T OEM: 98703T

No. 26501
STARBOARD
CYLINDER SHELLS
OEM: 14034
No. 26511
PORT
CYLINDER SHELLS
OEM: 14035

R / MR / Alpha One
Alpha One Gen II (1983 & Up) Bravo
No. 11610 No. 11620 No. 21981
P.T. CYLINDER END CAP P.T. CYLINDER END CAP PIVOT END
OEM: 806191T OEM: 88035 OEM: 45522T
1.890” 2.080”
Black
Paint

Alpha One Gen II Alpha One / Bravo R / MR / Alpha One / Bravo
(1991 & Up) (1983 & Up) (1983 & Up)
No. 26580 No. 26380 No. 87400
PT CYLINDER OVERHAUL KIT P.T.CYLINDER OVERHAUL KIT P.T. SEAL KIT
OEM: 87399A3 OEM: 87399A2 OEM: 25-87400A2

Kit Contains: Kit Contains:
GLM OEM ITEM GLM OEM ITEM
22491 (3) 160084 Detent Ball 22491 (3) 160084 Detent Ball Kit Contains:
26377 N/A Screw 26381 - Screw GLM OEM ITEM
26378 N/A Spacer 26382 - Washer 07400 N/A Stainless Steel Washer
26379 (3) N/A Spring 26383 - Guide 08110 N/A Copper Spring Wire
26384 N/A Ball - Chrome 26384 N/A Ball - Chrome 08742 N/A Spring Cutter
26385 N/A Eyelet 26385 N/A Eyelet 08743 N/A Retaining Ring
26386 N/A Spring 26386 N/A Spring 41171 N/A Quad Ring
26387 N/A Spring Pin 26387 N/A Spring Pin 80139 N/A O-ring
26394 N/A Floating Piston 26388 N/A Shock Piston 81169 (2) N/A O-ring
26396 N/A Spring Seat 26391 N/A Pusher 82189 (2) N/A O-ring
26397 (3) N/A Valve Seat 26392 N/A Spring 82239 (2) N/A O-ring
26398 N/A Shock Piston 26393 N/A Floating Piston
For All (1983 & Up) R / MR / Alpha One
Alpha One Gen II
EXCEPT Alpha One Gen II Alpha One Gen II / Bravo
