MerCruiser

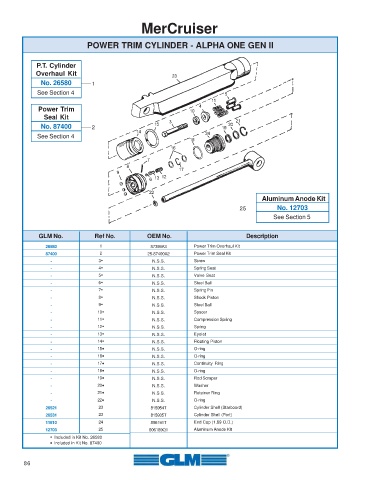

POWER TRIM CYLINDER - ALPHA ONE GEN II

P.T. Cylinder
Overhaul Kit
No. 26580 1
See Section 4

Power Trim
Seal Kit
No. 87400 2
See Section 4

Aluminum Anode Kit
25 No. 12703
See Section 5

GLM No. Ref No. OEM No. Description
26580 1 87399A3 Power Trim Overhaul Kit
87400 2 25-87400A2 Power Trim Seal Kit
- 3  N.S.S. Screw
- 4  N.S.S. Spring Seat
- 5  N.S.S. Valve Seat
- 6  N.S.S. Steel Ball
- 7  N.S.S. Spring Pin
- 8  N.S.S. Shock Piston
- 9  N.S.S. Steel Ball
- 10  N.S.S. Spacer
- 11  N.S.S. Compression Spring
- 12  N.S.S. Spring
- 13  N.S.S. Eyelet
- 14  N.S.S. Floating Piston
- 15  N.S.S. O-ring
- 16  N.S.S. O-ring
- 17 N.S.S. Continuity Ring
- 18  N.S.S. O-ring
- 19  N.S.S. Rod Scraper
- 20  N.S.S. Washer
- 21  N.S.S. Retainer Ring
- 22  N.S.S. O-ring
26521 23 815954T Cylinder Shell (Starboard)
26531 23 815935T Cylinder Shell (Port)
11610 24 806191T End Cap (1.89 O.D.)
12703 25 806189Q1 Aluminum Anode Kit
 Included in Kit No. 26580
 Included in Kit No. 87400

86
