MerCruiser

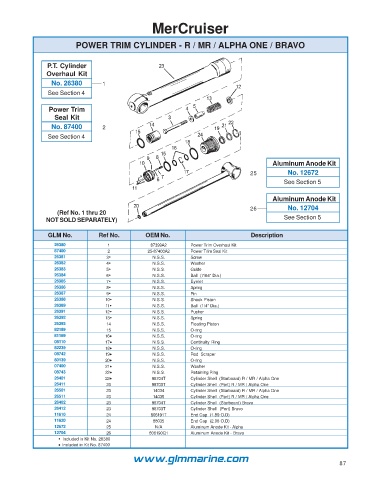

POWER TRIM CYLINDER - R / MR / ALPHA ONE / BRAVO

P.T. Cylinder
Overhaul Kit
No. 26380 1
See Section 4

Power Trim
Seal Kit
No. 87400 2

See Section 4

Aluminum Anode Kit
25 No. 12672
See Section 5

Aluminum Anode Kit
26 No. 12704
(Ref No. 1 thru 20
NOT SOLD SEPARATELY) See Section 5

GLM No. Ref No. OEM No. Description
26380 1 87399A2 Power Trim Overhaul Kit
87400 2 25-87400A2 Power Trim Seal Kit
26381 3  N.S.S. Screw
26382 4  N.S.S. Washer
26383 5  N.S.S. Guide
26384 6  N.S.S. Ball (7/64” Dia.)
26385 7  N.S.S. Eyelet
26386 8  N.S.S. Spring
26387 9  N.S.S. Pin
26388 10  N.S.S. Shock Piston
26389 11  N.S.S. Ball (1/4” Dia.)
26391 12  N.S.S. Pusher
26392 13  N.S.S. Spring
26393 14 N.S.S. Floating Piston
82189 15 N.S.S. O-ring
81169 16  N.S.S. O-ring
08110 17  N.S.S. Continuity Ring
82239 18  N.S.S. O-ring
08742 19  N.S.S. Rod Scraper
80139 20  N.S.S. O-ring
07400 21  N.S.S. Washer
08743 22  N.S.S. Retaining Ring
26401 23  98704T Cylinder Shell (Starboard) R / MR / Alpha One
26411 23 98703T Cylinder Shell (Port) R / MR / Alpha One
26501 23 14034 Cylinder Shell (Starboard) R / MR / Alpha One
26511 23 14035 Cylinder Shell (Port) R / MR / Alpha One
26402 23 98704T Cylinder Shell (Starboard) Bravo
26412 23 98703T Cylinder Shell (Port) Bravo
11610 24 806191T End Cap (1.89 O.D)
11620 24 88035 End Cap (2.08 O.D)
12672 25 N/A Aluminum Anode Kit - Alpha
12704 26 806190Q1 Aluminum Anode Kit - Bravo
 Included in Kit No. 26380
 Included in Kit No. 87400

www.glmmarine.com
87
