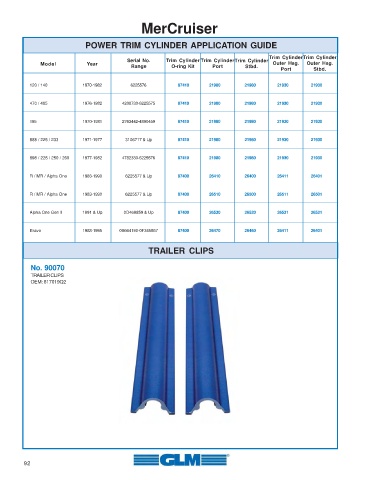

MerCruiser
POWER TRIM CYLINDER APPLICATION GUIDE
Trim CylinderTrim Cylinder
Serial No. Trim Cylinder Trim Cylinder Trim Cylinder
Model Year Outer Hsg. Outer Hsg.
Range O-ring Kit Port Stbd.
Port Stbd.
120 / 140 1970-1982 6225576 87410 21980 21980 21930 21930
470 / 485 1976-1982 4208730-6225575 87410 21980 21980 21930 21930
165 1970-1981 2763442-4890459 87410 21980 21980 21930 21930
888 / 225 / 233 1971-1977 3106717 & Up 87410 21980 21980 21930 21930
898 / 228 / 250 / 260 1977-1982 4782330-6225576 87410 21980 21980 21930 21930
R / MR / Alpha One 1983-1990 6225577 & Up 87400 26410 26400 26411 26401
R / MR / Alpha One 1983-1990 6225577 & Up 87400 26510 26500 26511 26501
Alpha One Gen II 1991 & Up 0D469859 & Up 87400 26530 26520 26531 26521
Bravo 1988-1995 0B664190-0F345867 87400 26470 26460 26411 26401
TRAILER CLIPS
No. 90070
TRAILER CLIPS
OEM: 817019Q2
92
