MerCruiser

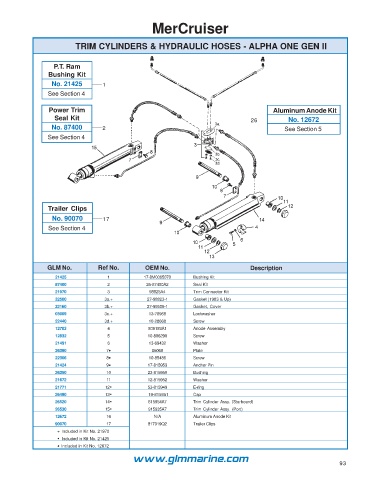

TRIM CYLINDERS & HYDRAULIC HOSES - ALPHA ONE GEN II

P.T. Ram
Bushing Kit
No. 21425 1

See Section 4

Power Trim Aluminum Anode Kit
Seal Kit 26 No. 12672
No. 87400 2 See Section 5
See Section 4

Trailer Clips
No. 90070 17
See Section 4

GLM No. Ref No. OEM No. Description

21425 1 17-8M0065070 Bushing Kit
87400 2 25-87400A2 Seal Kit
21970 3 98825A4 Trim Connector Kit
32500 3a.+ 27-98823-1 Gasket (1983 & Up)
32160 3b.+ 27-99506-1 Gasket, Cover
05009 3c.+ 13-78968 Lockwasher
22440 3d.+ 10-28668 Screw
12703 4 806189A1 Anode Assembly
12832 5 10-806290 Screw
21491 6 13-69432 Washer
26390 7  85060 Plate
22306 8  10-85486 Screw
21424 9  17-815953 Anchor Pin
26350 10 23-815950 Bushing
21672 11 12-815952 Washer
21771 12  53-815949 E-ring
26490 13  19-815951 Cap
26520 14  815954A7 Trim Cylinder Assy. (Starboard)
26530 15  915935A7 Trim Cylinder Assy. (Port)
12672 16 N/A Aluminum Anode Kit
90070 17 817019Q2 Trailer Clips
+ Included in Kit No. 21970
 Included in Kit No. 21425
 Included in Kit No. 12672
www.glmmarine.com
93
