MerCruiser

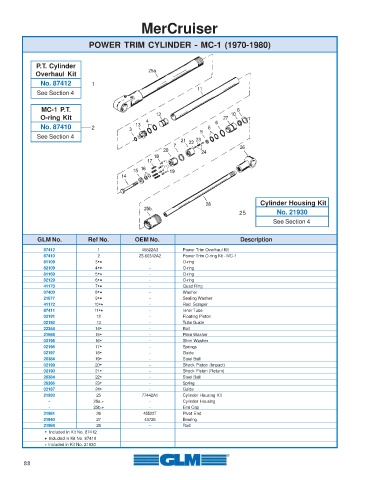

POWER TRIM CYLINDER - MC-1 (1970-1980)

P.T. Cylinder
Overhaul Kit
No. 87412 1
See Section 4

MC-1 P.T.
O-ring Kit
No. 87410 2

See Section 4

Cylinder Housing Kit
25 No. 21930
See Section 4

GLM No. Ref No. OEM No. Description
87412 1 45522A3 Power Trim Overhaul Kit
87410 2 25-60342A2 Power Trim O-ring Kit - MC-1
81109 3   - O-ring
82109 4   - O-ring
81169 5   - O-ring
82129 6   - O-ring
41170 7   - Quad Ring
07400 8   - Washer
21677 9   - Sealing Washer
41172 10   - Rod Scraper
87411 11   - Inner Tube
02191 12 - Floating Piston
02192 13 - Tube Guide
22354 14  - Bolt
21668 15  - Plain Washer
02195 16  - Shim Washer
02196 17  - Springs
02197 18  - Guide
26384 19  - Steel Ball
02199 20  - Shock Piston (Impact)
02190 21  - Shock Piston (Return)
26384 22  - Steel Ball
26386 23  - Spring
02187 24  - Guide
21930 25 77442A1 Cylinder Housing Kit
- 25a.+ - Cylinder Housing
- 25b.+ - End Cap
21981 26 45522T Pivot End
21940 27 45726 Bearing
21984 28 - Rod
 Included in Kit No. 87412
 Included in Kit No. 87410
+ Included in Kit No. 21930

88
