Page 113 - MerCruiser_Catalog_Flipbook
P. 113
MerCruiser

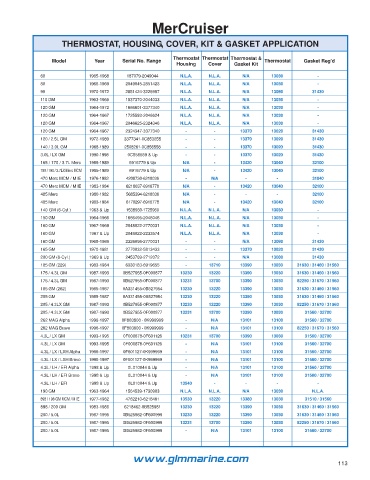

THERMOSTAT, HOUSING, COVER, KIT & GASKET APPLICATION
Thermostat Thermostat Thermostat &
Model Year Serial No. Range Thermostat Gasket Reg’d
Housing Cover Gasket Kit
60 1965-1968 187079-2049044 N.L.A. N.L.A. N/A 13030 -
80 1966-1969 2049045-2851423 N.L.A. N.L.A. N/A 13030 -
90 1970-1972 2851424-3226957 N.L.A. N.L.A. N/A 13080 31430
110 GM 1963-1966 1537370-2044033 N.L.A. N.L.A. N/A 13030 -
120 GM 1964-1972 1666601-3377340 N.L.A. N.L.A. N/A 13030 -
120 GM 1964-1967 1725593-2046624 N.L.A. N.L.A. N/A 13030 -
120 GM 1964-1967 2046625-2324346 N.L.A. N.L.A. N/A 13030 -
120 GM 1964-1967 2324347-3377340 - - 13370 13020 31430
120 / 2.5L GM 1972-1989 3377341-0C853255 - - 13370 13020 31430
140 / 3.0L GM 1968-1989 2508261-0C856558 - - 13370 13020 31430
3.0L / LX GM 1990-1998 0C856559 & Up - - 13370 13020 31430
165 / 170 / 3.7L Merc 1985-1989 6916779 & Up N/A - 13420 13040 32100
180 / 190 / 3.7LX Merc MCM 1985-1989 6916779 & Up N/A - 13420 13040 32100
470 Merc MCM / M IE 1976-1982 4208730-6218036 - N/A - - 31840
470 Merc MCM / M IE 1983-1984 6218037-6916778 N/A - 13420 13040 32100
485 Merc 1980-1982 5685394-6218036 N/A - - - 32100
485 Merc 1983-1984 6170297-6916778 N/A - 13420 13040 32100
140 GM (6-Cyl.) 1963 & Up 1538930-1725960 N.L.A. N.L.A. N/A 13030 -
150 GM 1964-1966 1666495-2048046 N.L.A. N.L.A. N/A 13030 -
160 GM 1967-1969 2048022-2770031 N.L.A. N.L.A. N/A 13030 -
160 GM 1967 & Up 2048022-2233574 N.L.A. N.L.A. N/A 13030 -
160 GM 1968-1969 2326096-2770031 - - N/A 13080 31430
165 GM 1970-1981 2770032-5813433 - - 13370 13020 31430
200 GM (6-Cyl.) 1969 & Up 2453769-2712072 - - N/A 13080 31430
185 GM (229) 1983-1984 6330183-6919655 - 13710 13390 13030 31630 / 31460 / 31560
175 / 4.3L GM 1987-1993 0B527955-0F000877 13230 13220 13390 13030 31630 / 31460 / 31560
175 / 4.3L GM 1987-1993 0B527955-0F000877 13231 13700 13390 13030 82250 / 31670 / 31560
185 GM (262) 1985-1987 0A331455-0B527954 13230 13220 13390 13030 31630 / 31460 / 31560
205 GM 1985-1987 0A331455-0B527954 13230 13220 13390 13030 31630 / 31460 / 31560
205 / 4.3LX GM 1987-1993 0B527955-0F000877 13230 13220 13390 13030 82250 / 31670 / 31560
205 / 4.3LX GM 1987-1993 0B527955-0F000877 13231 13700 13390 13030 31560 / 32700
262 MAG Alpha 1996-1997 0F803800 - 0K999999 - N/A 13101 13100 31560 / 32700
262 MAG Bravo 1996-1997 0F803800 - 0K999999 - N/A 13101 13100 82250 / 31670 / 31560
4.3L / LX GM 1993-1995 0F000878-0F601126 13231 13700 13390 13030 31560 / 32700
4.3L / LX GM 1993-1995 0F000878-0F601126 - N/A 13101 13100 31560 / 32700
4.3L / LX / LXH Alpha 1996-1997 0F601127-0K999999 - N/A 13101 13100 31560 / 32700
4.3L / LX / LXH Bravo 1996-1997 0F601127-0K999999 - N/A 13101 13100 31560 / 32700
4.3L / LH / EFI Alpha 1998 & Up 0L010044 & Up - N/A 13101 13100 31560 / 32700
4.3L / LH / EFI Bravo 1998 & Up 0L010044 & Up - N/A 13101 13100 31560 / 32700
4.3L / LH / EFI 1998 & Up 0L010044 & Up 13540 - - - -
190 GM 1963-1964 1564539-1730903 N.L.A. N.L.A. N/A 13030 N.L.A.
898 / 198 GM MCM / M IE 1977-1982 4762210-6218461 13530 13220 13380 13030 31510 / 31560
898 / 200 GM 1983-1986 6218462-0B525981 13230 13220 13390 13030 31630 / 31460 / 31560
200 / 5.0L 1987-1995 0B525982-0F600999 13230 13220 13390 13030 31630 / 31460 / 31560
200 / 5.0L 1987-1995 0B525982-0F600999 13231 13700 13390 13030 82250 / 31670 / 31560
200 / 5.0L 1987-1995 0B525982-0F600999 - N/A 13101 13100 31560 / 32700
www.glmmarine.com
113
