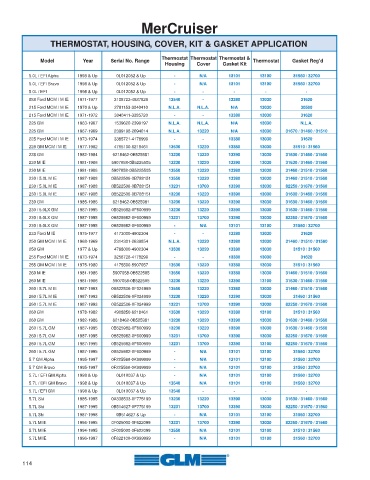

Page 114 - MerCruiser_Catalog_Flipbook
P. 114
MerCruiser
THERMOSTAT, HOUSING, COVER, KIT & GASKET APPLICATION
Thermostat Thermostat Thermostat &
Model Year Serial No. Range Thermostat Gasket Reg’d
Housing Cover Gasket Kit
5.0L / EFI Alpha 1998 & Up 0L012052 & Up - N/A 13101 13100 31560 / 32700
5.0L / EFI Bravo 1998 & Up 0L012052 & Up - N/A 13101 13100 31560 / 32700
5.0L / EFI 1998 & Up 0L012052 & Up - - - - -
888 Ford MCM / M IE 1971-1977 3108723-4887829 13540 - 13380 13030 31620
215 Ford MCM / M IE 1970 & Up 2781153-3040410 N.L.A. N.L.A. N/A 13030 30500
215 Ford MCM / M IE 1971-1972 3040411-3385720 - - 13380 13030 31620
225 GM 1963-1967 1539620-2399197 N.L.A. N.L.A. N/A 13030 N.L.A.
225 GM 1967-1969 2399198-2694014 N.L.A. 13220 N/A 13030 31670 / 31460 / 31510
225 Ford MCM / M IE 1973-1974 3385721-4176999 - - 13380 13030 31620
228 GM MCM / M IE 1977-1982 4765100-6218461 13530 13220 13380 13030 31510 / 31560
228 GM 1982-1984 6218462-0B525981 13230 13220 13390 13030 31630 / 31460 / 31560
230 M IE 1981-1986 5907058-0B5225505 13230 13220 13390 13030 31630 / 31460 / 31560
230 M IE 1981-1986 5907058-0B5225505 13550 13220 13380 13030 31460 / 31510 / 31560
230 / 5.0L M IE 1987-1988 0B522506-0B788151 13550 13220 13380 13030 31460 / 31510 / 31560
230 / 5.0L M IE 1987-1988 0B522506-0B788151 13231 13700 13390 13030 82250 / 31670 / 31560
230 / 5.0L M IE 1987-1988 0B522506-0B788151 13230 13220 13390 13030 31630 / 31460 / 31560
230 GM 1985-1986 6218462-0B525981 13230 13220 13390 13030 31630 / 31460 / 31560
230 / 5.0LX GM 1987-1995 0B525982-0F600999 13230 13220 13390 13030 31630 / 31460 / 31560
230 / 5.0LX GM 1987-1995 0B525982-0F600999 13231 13700 13390 13030 82250 / 31670 / 31560
230 / 5.0LX GM 1987-1995 0B525982-0F600999 - N/A 13101 13100 31560 / 32700
233 Ford M IE 1975-1977 4173000-4902304 - - 13380 13030 31620
250 GM MCM / M IE 1968-1969 2314301-2639854 N.L.A. 13220 13380 13030 31460 / 31510 / 31560
250 GM 1977 & Up 4768000-4902304 13530 13220 13380 13030 31510 / 31560
255 Ford MCM / M IE 1973-1974 3258728-4178299 - - 13380 13030 31620
255 GM MCM / M IE 1975-1980 4175500-5907057 13530 13220 13380 13030 31510 / 31560
260 M IE 1981-1986 5907058-0B522505 13550 13220 13380 13030 31460 / 31510 / 31560
260 M IE 1981-1986 5907058-0B522505 13230 13220 13390 13100 31630 / 31460 / 31560
260 / 5.7L M IE 1987-1993 0B522506-0F024999 13550 13220 13380 13030 31460 / 31510 / 31560
260 / 5.7L M IE 1987-1993 0B522506-0F024999 13230 13220 13390 13030 31460 / 31560
260 / 5.7L M IE 1987-1993 0B522506-0F024999 13231 13700 13390 13030 82250 / 31670 / 31560
260 GM 1978-1982 4908850-6218461 13530 13220 13380 13100 31510 / 31560
260 GM 1982-1986 6218462-0B525981 13230 13220 13390 13030 31630 / 31460 / 31560
260 / 5.7L GM 1987-1995 0B525982-0F600999 13230 13220 13390 13030 31630 / 31460 / 31560
260 / 5.7L GM 1987-1995 0B525982-0F600999 13231 13700 13390 13030 82250 / 31670 / 31560
260 / 5.7L GM 1987-1995 0B525982-0F600999 13231 13700 13390 13100 82250 / 31670 / 31560
260 / 5.7L GM 1987-1995 0B525982-0F600999 - N/A 13101 13100 31560 / 32700
5.7 GM Alpha 1995-1997 0F225560-0K999999 - N/A 13101 13100 31560 / 32700
5.7 GM Bravo 1995-1997 0F225560-0K999999 - N/A 13101 13100 31560 / 32700
5.7L / EFI GM Alpha 1998 & Up 0L010037 & Up - N/A 13101 13100 31560 / 32700
5.7L / EFI GM Bravo 1998 & Up 0L010037 & Up 13540 N/A 13101 13100 31560 / 32700
5.7L / EFI GM 1998 & Up 0L010037 & Up 13540 - - - -
5.7L Ski 1985-1995 0A338533-0F775199 13230 13220 13390 13030 31630 / 31460 / 31560
5.7L Ski 1987-1995 0B514627-0F775199 13231 13700 13390 13030 82250 / 31670 / 31560
5.7L Ski 1987-1998 0B514627 & Up - N/A 13101 13100 31560 / 32700
5.7L M IE 1994-1995 0F025000-0F622099 13231 13700 13390 13030 82250 / 31670 / 31560
5.7L M IE 1994-1995 0F025000-0F622099 13550 N/A 13101 13100 31510 / 31560
5.7L M IE 1996-1997 0F622100-0K999999 - N/A 13101 13100 31560 / 32700
114
