MerCruiser

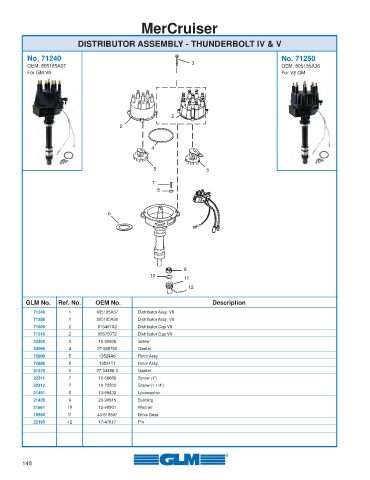

DISTRIBUTOR ASSEMBLY - THUNDERBOLT IV & V
No. 71240 No. 71250
OEM: 805185A37 3 OEM: 805185A36
For GM V6 For V8 GM
2
2
4
5 5
7
8
6
9
10 11
12
GLM No. Ref. No. OEM No. Description
71240 1 805185A37 Distributor Assy. V6
71250 1 805185A36 Distributor Assy. V8
71500 2 815407A2 Distributor Cap V6
71510 2 805759T2 Distributor Cap V8
22305 3 10-90926 Screw
32060 4 27-805760 Gasket
72890 5 13524A6 Rotor Assy.
72880 5 13524T1 Rotor Assy.
31370 6 27-34486-3 Gasket
22311 7 10-66686 Screw (1”)
22312 7 10-72202 Screw (1-1/4”)
21491 8 13-69432 Lockwasher
21426 9 23-90915 Bushing
21661 10 12-90931 Washer
19360 11 43-818807 Drive Gear
22195 12 17-47617 Pin
