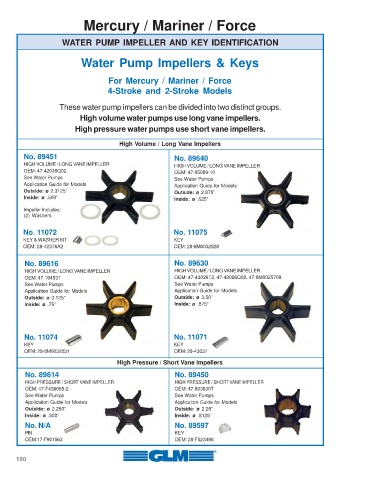

P. 100
Mercury / Mariner / Force
WATER PUMP IMPELLER AND KEY IDENTIFICATION
Water Pump Impellers & Keys
For Mercury / Mariner / Force
4-Stroke and 2-Stroke Models
These water pump impellers can be divided into two distinct groups.
High volume water pumps use long vane impellers.
High pressure water pumps use short vane impellers.
High Volume / Long Vane Impellers
No. 89451 No. 89640
HIGH VOLUME / LONG VANE IMPELLER HIGH VOLUME / LONG VANE IMPELLER
OEM: 47-42038Q02 OEM: 47-85089-10
See Water Pumps See Water Pumps
Application Guide for Models Application Guide for Models
Outside: ø 2.3125” Outside: ø 2.875”
Inside: ø .500” Inside: ø .625”
Impeller Includes:
(2) Washers
No. 11072 No. 11075
KEY & WASHER KIT KEY
OEM: 28-42376A2 OEM: 28-8M0032828
No. 89616 No. 89630
HIGH VOLUME / LONG VANE IMPELLER HIGH VOLUME / LONG VANE IMPELLER
OEM: 47-19453T OEM: 47-43026T2, 47-43026Q02, 47-8M0025709
See Water Pumps See Water Pumps
Application Guide for Models Application Guide for Models
Outside: ø 3.125” Outside: ø 3.50”
Inside: ø .75” Inside: ø .875”
No. 11074 No. 11071
KEY KEY
OEM: 28-8M0032831 OEM: 28-43037
High Pressure / Short Vane Impellers
No. 89614 No. 89450
HIGH PRESSURE / SHORT VANE IMPELLER HIGH PRESSURE / SHORT VANE IMPELLER
OEM: 47-F436065-2 OEM: 47-803630T
See Water Pumps See Water Pumps
Application Guide for Models Application Guide for Models
Outside: ø 2.250” Outside: ø 2.25”
Inside: ø .500” Inside: ø .8125”
No. N/A No. 89597
PIN KEY
OEM:17-F901563 OEM: 28-F523498
100
