Mercury / Mariner / Force

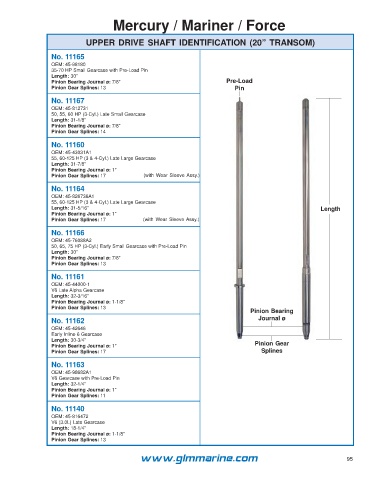

UPPER DRIVE SHAFT IDENTIFICATION (20” TRANSOM)

No. 11165
OEM: 45-98180
35-70 HP Small Gearcase with Pre-Load Pin
Length: 30”
Pinion Bearing Journal ø: 7/8” Pre-Load
Pinion Gear Splines: 13 Pin
No. 11167
OEM: 45-812731
50, 55, 60 HP (3-Cyl.) Late Small Gearcase
Length: 31-1/8”
Pinion Bearing Journal ø: 7/8”
Pinion Gear Splines: 14
No. 11160
OEM: 45-43031A1
55, 60-125 HP (3 & 4-Cyl.) Late Large Gearcase
Length: 31-7/8”
Pinion Bearing Journal ø: 1”
Pinion Gear Splines: 17 (with Wear Sleeve Assy.)
No. 11164
OEM: 45-826736A1
55, 60-125 HP (3 & 4-Cyl.) Late Large Gearcase
Length: 31-5/16” Length
Pinion Bearing Journal ø: 1”
Pinion Gear Splines: 17 (with Wear Sleeve Assy.)
No. 11166
OEM: 45-76088A2
50, 65, 75 HP (3-Cyl.) Early Small Gearcase with Pre-Load Pin
Length: 30”
Pinion Bearing Journal ø: 7/8”
Pinion Gear Splines: 13
No. 11161
OEM: 45-44000-1
V6 Late Alpha Gearcase
Length: 32-3/16”
Pinion Bearing Journal ø: 1-1/8”
Pinion Gear Splines: 13
Pinion Bearing
No. 11162 Journal ø
OEM: 45-42646
Early Inline 6 Gearcase
Length: 30-3/4” Pinion Gear
Pinion Bearing Journal ø: 1”
Pinion Gear Splines: 17 Splines
No. 11163
OEM: 45-98682A1
V6 Gearcase with Pre-Load Pin
Length: 32-1/4”
Pinion Bearing Journal ø: 1”
Pinion Gear Splines: 11

No. 11140
OEM: 45-816472
V6 (3.0L) Late Gearcase
Length: 18-1/4”
Pinion Bearing Journal ø: 1-1/8”
Pinion Gear Splines: 13
