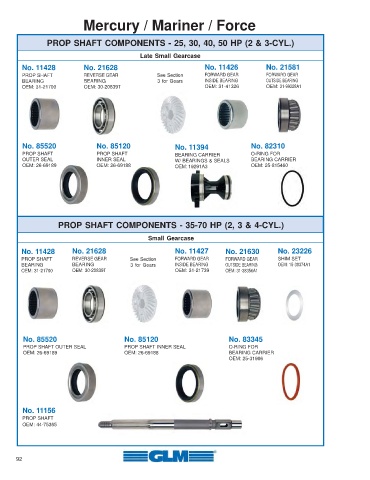

Mercury / Mariner / Force

PROP SHAFT COMPONENTS - 25, 30, 40, 50 HP (2 & 3-CYL.)

Late Small Gearcase
No. 11428 No. 21628 No. 11426 No. 21581
PROP SHAFT REVERSE GEAR See Section FORWARD GEAR FORWARD GEAR
BEARING BEARING 3 for Gears INSIDE BEARING OUTSIDE BEARING
OEM: 31-21700 OEM: 30-20839T OEM: 31-41326 OEM: 31-99328A1

No. 85520 No. 85120 No. 11394 No. 82310
PROP SHAFT PROP SHAFT BEARING CARRIER O-RING FOR
OUTER SEAL INNER SEAL W/ BEARINGS & SEALS BEARING CARRIER
OEM: 26-69189 OEM: 26-69188 OEM: 19291A3 OEM: 25-815460

PROP SHAFT COMPONENTS - 35-70 HP (2, 3 & 4-CYL.)
Small Gearcase

No. 11428 No. 21628 No. 11427 No. 21630 No. 23226
PROP SHAFT REVERSE GEAR See Section FORWARD GEAR FORWARD GEAR SHIM SET
BEARING BEARING 3 for Gears INSIDE BEARING OUTSIDE BEARING OEM: 15-38374A1
OEM: 31-21700 OEM: 30-20839T OEM: 31-21739 OEM: 31-38356A1

No. 85520 No. 85120 No. 83345
PROP SHAFT OUTER SEAL PROP SHAFT INNER SEAL O-RING FOR
OEM: 26-69189 OEM: 26-69188 BEARING CARRIER
OEM: 25-31986

No. 11156
PROP SHAFT
OEM: 44-75365

92
