Page 90 - MercMarForc_Catalog_Flipbook

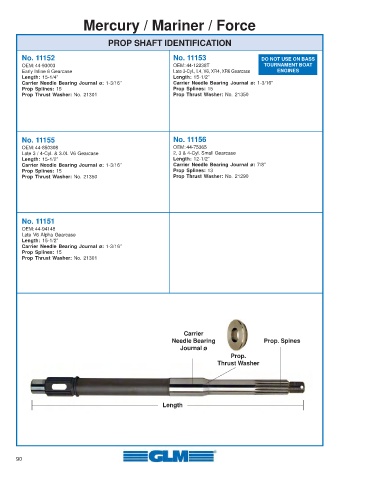

P. 90
Mercury / Mariner / Force
PROP SHAFT IDENTIFICATION
No. 11152 No. 11153 DO NOT USE ON BASS
OEM: 44-93003 OEM: 44-12238T TOURNAMENT BOAT
Early Inline 6 Gearcase Late 3-Cyl., L4, V6, XR4, XR6 Gearcase ENGINES
Length: 15-1/4” Length: 15-1/2”
Carrier Needle Bearing Journal ø: 1-3/16” Carrier Needle Bearing Journal ø: 1-3/16”
Prop Splines: 15 Prop Splines: 15
Prop Thrust Washer: No. 21301 Prop Thrust Washer: No. 21350
No. 11155 No. 11156
OEM: 44-850308 OEM: 44-75365
Late 3 / 4-Cyl. & 3.0L V6 Gearcase 2, 3 & 4-Cyl. Small Gearcase
Length: 15-1/2” Length: 12-1/2”
Carrier Needle Bearing Journal ø: 1-3/16” Carrier Needle Bearing Journal ø: 7/8”
Prop Splines: 15 Prop Splines: 13
Prop Thrust Washer: No. 21350 Prop Thrust Washer: No. 21290
No. 11151
OEM: 44-94148
Late V6 Alpha Gearcase
Length: 15-1/2”
Carrier Needle Bearing Journal ø: 1-3/16”
Prop Splines: 15
Prop Thrust Washer: No. 21301
Carrier
Needle Bearing Prop. Spines
Journal ø
Prop.
Thrust Washer
Length
90
