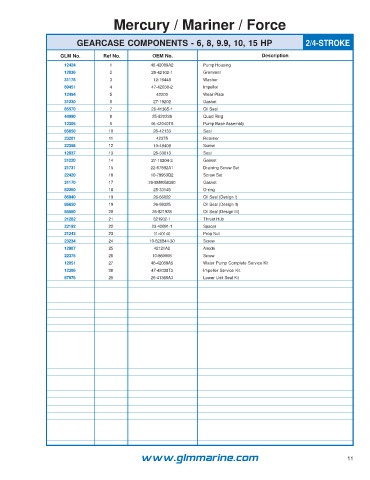

Mercury / Mariner / Force



                          GEARCASE COMPONENTS - 6, 8, 9.9, 10, 15 HP                                  2/4-STROKE

                     GLM No.       Ref No.         OEM No.                              Description
                      12424          1             46-42089A2       Pump Housing
                      12836          2             26-42102-1       Grommet
                      31178          3              12-16448        Washer
                      89451          4             47-42038-2       Impeller
                      12494          5               42200          Wear Plate
                      31230          6              27-19202        Gasket
                      85570          7             26-41365-1       Oil Seal
                      44990          8             25-822236        Quad Ring
                      12305          9             46-42040T5       Pump Base Assembly
                      85650          10             26-42133        Seal
                      23201          11              42375          Retainer
                      22358          12             10-48408        Screw
                      12837          13             26-33613        Seal
                      31220          14            27-19204-3       Gasket
                      21731          15            22-67892A1       Draining Screw Set
                      22420          16            10-79953Q2       Screw Set
                      31170          17           26-8M0058390      Gasket
                      82260          18             25-33145        O-ring
                      86840          19             26-66022        Oil Seal (Design I)
                      86850          19             26-99325        Oil Seal (Design II)
                      85560          20            26-821928        Oil Seal (Design III)
                      21282          21             821932-1        Thrust Hub
                      22192          22            23-42091-1       Spacer
                      21243          23             11-40140        Prop Nut
                      23234          24           10-826844-30      Screw
                      12907          25             42121A2         Anode
                      22375          26            10-860008        Screw
                      12051          27            46-42089A5       Water Pump Complete Service Kit
                      12306          28            47-42038T3       Impeller Service Kit
                      87576          29            26-41365A3       Lower Unit Seal Kit
