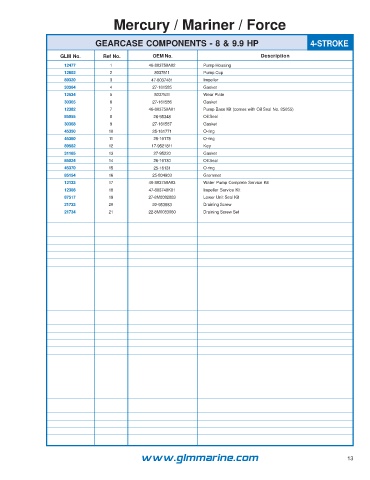

Mercury / Mariner / Force
GEARCASE COMPONENTS - 8 & 9.9 HP 4-STROKE
GLM No. Ref No. OEM No. Description
12477 1 46-803750A02 Pump Housing
12802 2 8037511 Pump Cup
89320 3 47-8037481 Impeller
30364 4 27-161585 Gasket
12534 5 8037531 Wear Plate
30365 6 27-161586 Gasket
12382 7 46-803750A01 Pump Base Kit (comes with Oil Seal No. 85055)
85055 8 26-95348 Oil Seal
30368 9 27-161587 Gasket
45350 10 25-161771 O-ring
45360 11 25-16178 O-ring
89582 12 17-9521811 Key
31165 13 27-95220 Gasket
85024 14 26-16130 Oil Seal
45370 15 25-16131 O-ring
85154 16 25-804903 Grommet
12133 17 46-803750A03 Water Pump Complete Service Kit
12308 18 47-803748K01 Impeller Service Kit
87517 19 27-8M0082883 Lower Unit Seal Kit
21733 20 22-953683 Draining Screw
21734 21 22-8M0083060 Draining Screw Set
