Mercury / Mariner / Force

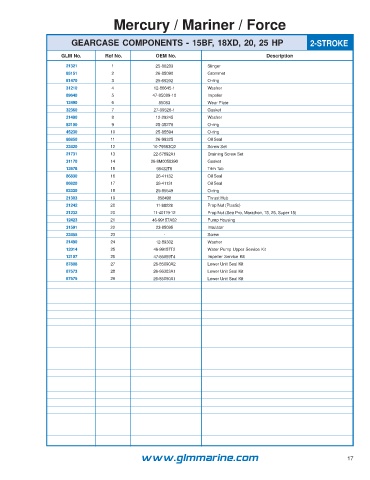

GEARCASE COMPONENTS - 15BF, 18XD, 20, 25 HP 2-STROKE
GLM No. Ref No. OEM No. Description
21321 1 25-86203 Slinger
85151 2 26-85090 Grommet
81470 3 25-69202 O-ring
31210 4 12-86645-1 Washer
89640 5 47-85089-10 Impeller
12490 6 85083 Wear Plate
32360 7 27-99326-1 Gasket
21490 8 12-29245 Washer
82100 9 25-35276 O-ring
45230 10 25-85594 O-ring
86850 11 26-99325 Oil Seal
22420 12 10-79953Q2 Screw Set
21731 13 22-67892A1 Draining Screw Set
31170 14 26-8M0058390 Gasket
12678 15 98432T6 Trim Tab
86830 16 26-41132 Oil Seal
86820 17 26-41131 Oil Seal
83330 18 25-85549 O-ring
21303 19 858498 Thrust Hub
21242 20 11-88228 Prop Nut (Plastic)
21232 20 11-40119-12 Prop Nut (Sea Pro, Marathon, 15, 25, Super 15)
12423 21 46-99157A02 Pump Housing
31591 22 23-85095 Insulator
22455 23 - Screw
21490 24 12-89302 Washer
12014 25 46-99157T2 Water Pump Upper Service Kit
12107 26 47-85089T4 Impeller Service Kit
87808 27 26-85090A2 Lower Unit Seal Kit
87573 28 26-66303A1 Lower Unit Seal Kit
87575 29 26-85090A1 Lower Unit Seal Kit
