Mercury / Mariner / Force

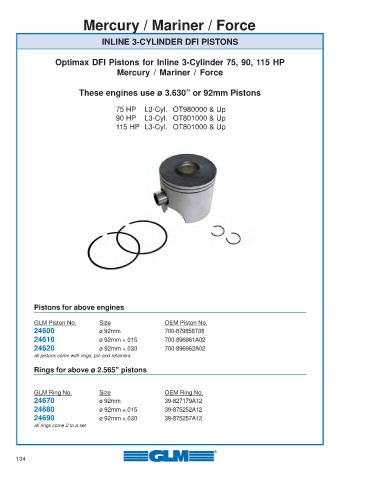

INLINE 3-CYLINDER DFI PISTONS

Optimax DFI Pistons for Inline 3-Cylinder 75, 90, 115 HP
Mercury / Mariner / Force

These engines use ø 3.630” or 92mm Pistons

75 HP L3-Cyl. OT980000 & Up
90 HP L3-Cyl. OT801000 & Up
115 HP L3-Cyl. OT801000 & Up

Pistons for above engines

GLM Piston No. Size OEM Piston No.
24600 ø 92mm 700-879858T08
24610 ø 92mm +.015 700-896961A02
24620 ø 92mm +.030 700-896962A02
all pistons come with rings, pin and retainers

Rings for above ø 2.565” pistons

GLM Ring No. Size OEM Ring No.
24670 ø 92mm 39-827179A12
24680 ø 92mm +.015 39-875252A12
24690 ø 92mm +.030 39-875257A12
all rings come 2 to a set
