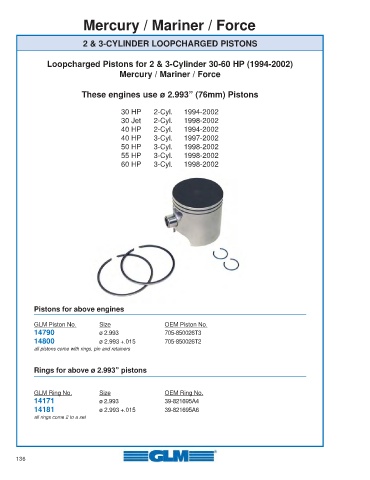

Page 136 - MercMarForc_Catalog_Flipbook

Mercury / Mariner / Force

2 & 3-CYLINDER LOOPCHARGED PISTONS

Loopcharged Pistons for 2 & 3-Cylinder 30-60 HP (1994-2002)
Mercury / Mariner / Force

These engines use ø 2.993” (76mm) Pistons

30 HP 2-Cyl. 1994-2002
30 Jet 2-Cyl. 1998-2002
40 HP 2-Cyl. 1994-2002
40 HP 3-Cyl. 1997-2002
50 HP 3-Cyl. 1998-2002
55 HP 3-Cyl. 1998-2002
60 HP 3-Cyl. 1998-2002

Pistons for above engines

GLM Piston No. Size OEM Piston No.
14790 ø 2.993 705-850026T3
14800 ø 2.993 +.015 705-850026T2
all pistons come with rings, pin and retainers

Rings for above ø 2.993” pistons

GLM Ring No. Size OEM Ring No.
14171 ø 2.993 39-821695A4
14181 ø 2.993 +.015 39-821695A6
all rings come 2 to a set

136
