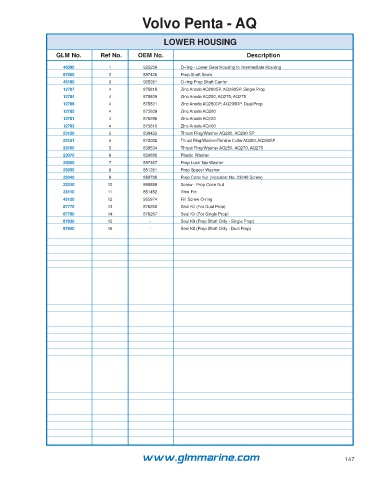

Volvo Penta - AQ

LOWER HOUSING

GLM No. Ref No. OEM No. Description
45090 1 925256 O-ring - Lower Gear Housing to Intermediate Housing
87060 2 897426 Prop Shaft Seals
45180 3 925261 O-ring Prop Shaft Carrier
12787 4 875815 Zinc Anode AQ280SP, AQ290SP, Single Prop
12784 4 875805 Zinc Anode AQ250, AQ270, AQ275
12788 4 875821 Zinc Anode AQ280DP, AQ290DP, Dual Prop
12785 4 875809 Zinc Anode AQ200
12781 4 876286 Zinc Anode AQ120
12783 4 875810 Zinc Anode AQ100
23150 5 839423 Thrust Ring/Washer AQ280, AQ290 SP
23151 5 872082 Thrust Ring/Washer/Fishline Cutter AQ280, AQ290SP
23160 5 839534 Thrust Ring/Washer AQ250, AQ270, AQ275
23070 6 850888 Plastic Washer
23060 7 897367 Prop Lock Tab Washer
23050 8 851261 Prop Spacer Washer
23040 9 850785 Prop Cone Nut (Includes: No. 23240 Screw)
23240 10 850889 Screw - Prop Cone Nut
23110 11 851452 Trim Fin
45120 12 955974 Fill Screw O-ring
87770 13 876268 Seal Kit (For Dual Prop)
87780 14 876267 Seal Kit (For Single Prop)
87830 15 - Seal Kit (Prop Shaft Only - Single Prop)
87840 16 - Seal Kit (Prop Shaft Only - Dual Prop)

www.glmmarine.com 147
