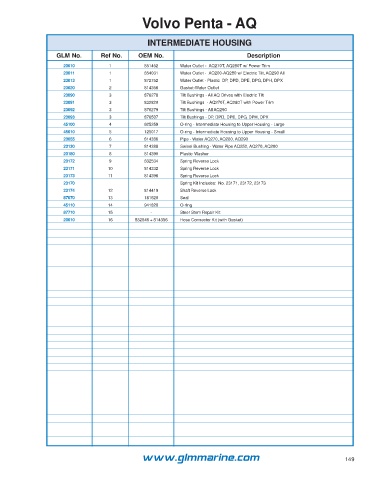

Page 149 - OMC_Catalog_Flipbook

Volvo Penta - AQ

INTERMEDIATE HOUSING

GLM No. Ref No. OEM No. Description
23010 1 851452 Water Outlet - AQ270T, AQ280T w/ Power Trim
23011 1 854031 Water Outlet - AQ200-AQ280 w/ Electric Tilt, AQ290 All
23013 1 872752 Water Outlet - Plastic DP, DPD, DPE, DPG, DPH, DPX
23020 2 814356 Gasket-Water Outlet
23090 3 876278 Tilt Bushings - All AQ Drives with Electric Tilt
23091 3 832820 Tilt Bushings - AQ270T, AQ280T with Power Trim
23092 3 876279 Tilt Bushings - All AQ290
23093 3 876507 Tilt Bushings - DP, DPD, DPE, DPG, DPH, DPX
45100 4 925259 O-ring - Intermediate Housing to Upper Housing - Large
45010 5 125017 O-ring - Intermediate Housing to Upper Housing - Small
23055 6 814386 Pipe - Water AQ270, AQ280, AQ290
23130 7 814388 Swivel Bushing - Water Pipe AQ250, AQ270, AQ280
23180 8 814390 Plastic Washer
23172 9 832534 Spring Reverse Lock
23171 10 814332 Spring Reverse Lock
23173 11 814396 Spring Reverse Lock
23170 Spring Kit Includes: No. 23171, 23172, 23173
23174 12 814419 Shaft Reverse Lock
87070 13 181620 Seal
45110 14 941820 O-ring
87710 15 - Steer Stem Repair Kit
23010 16 832846 + 814356 Hose Connector Kit (with Gasket)

www.glmmarine.com 149
