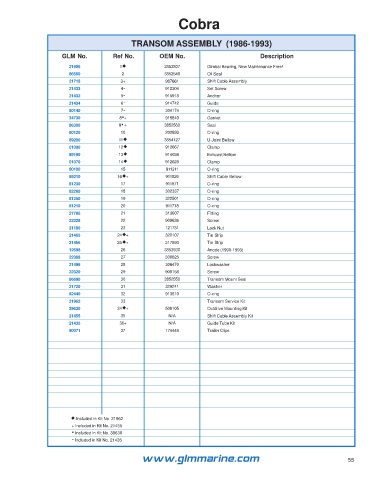

Cobra

TRANSOM ASSEMBLY (1986-1993)

GLM No. Ref No. OEM No. Description
21906 1 3853807 Gimbal Bearing, New Maintenance Free!
86560 2 3852548 Oil Seal
21715 3+ 987661 Shift Cable Assembly
21433 4- 912304 Set Screw
21432 5- 915918 Anchor
21434 6- 914742 Guide
80140 7- 304174 O-ring
34730 8•+ 915840 Gasket
86300 9•+ 3852560 Seal
80120 10 202893 O-ring
89200 11 3854127 U-Joint Bellow
01090 12 912667 Clamp
89190 13 914036 Exhuast Bellow
01070 14 912628 Clamp
80100 15 911311 O-ring
89210 16+ 911826 Shift Cable Bellow
81230 17 911871 O-ring
82260 18 302337 O-ring
81250 19 322501 O-ring
81210 20 911718 O-ring
27786 21 313607 Fitting
22328 22 909636 Screw
21180 23 121731 Lock Nut
21465 24+ 320107 Tie Strip
21466 25+ 317893 Tie Strip
12698 26 3853930 Anode (1990-1993)
22388 27 308825 Screw
21496 28 306470 Lockwasher
22320 29 908158 Screw
86690 30 3852550 Transom Mount Seal
21720 31 329241 Washer
82440 32 913810 O-ring
21962 33 - Transom Service Kit
39630 34+ 508105 Outdrive Mounting Kit
21455 35 N/A Shift Cable Assembly Kit
21435 36+ N/A Guide Tube Kit
90071 37 174448 Trailer Clips

 Included in Kit No. 21962
+ Included in Kit No. 21455
• Included in Kit No. 39630
- Included in Kit No. 21435

www.glmmarine.com 55
