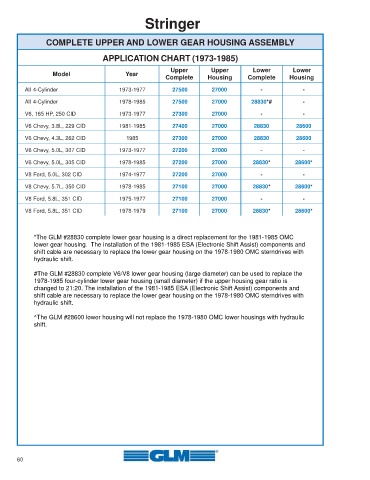

Stringer



                COMPLETE UPPER AND LOWER GEAR HOUSING ASSEMBLY

                                   APPLICATION CHART (1973-1985)

                                                         Upper         Upper         Lower        Lower
                  Model                    Year
                                                        Complete      Housing      Complete      Housing
         All 4-Cylinder                 1973-1977         27500        27000           -             -
         All 4-Cylinder                 1978-1985         27500        27000        28830*#          -

         V6, 165 HP, 250 CID            1973-1977         27300        27000           -             -
         V6 Chevy, 3.8L, 229 CID        1981-1985         27400        27000         28830         28600

         V6 Chevy, 4.3L, 262 CID           1985           27300        27000         28830         28600
         V6 Chevy, 5.0L, 307 CID        1973-1977         27200        27000           -             -

         V6 Chevy, 5.0L, 305 CID        1978-1985         27200        27000         28830*        28600*
         V8 Ford, 5.0L, 302 CID         1974-1977         27200        27000           -             -

         V8 Chevy, 5.7L, 350 CID        1978-1985         27100        27000         28830*        28600*
         V8 Ford, 5.8L, 351 CID         1975-1977         27100        27000           -             -

         V8 Ford, 5.8L, 351 CID         1978-1979         27100        27000         28830*        28600*



            *The GLM #28830 complete lower gear housing is a direct replacement for the 1981-1985 OMC
            lower gear housing.  The installation of the 1981-1985 ESA (Electronic Shift Assist) components and
            shift cable are necessary to replace the lower gear housing on the 1978-1980 OMC sterndrives with
            hydraulic shift.

            #The GLM #28830 complete V6/V8 lower gear housing (large diameter) can be used to replace the
            1978-1985 four-cylinder lower gear housing (small diameter) if the upper housing gear ratio is
            changed to 21:20. The installation of the 1981-1985 ESA (Electronic Shift Assist) components and
            shift cable are necessary to replace the lower gear housing on the 1978-1980 OMC sterndrives with
            hydraulic shift.

            ^The GLM #28600 lower housing will not replace the 1978-1980 OMC lower housings with hydraulic
            shift.
