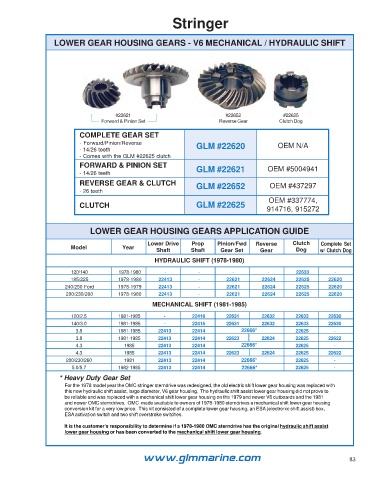

Stringer
LOWER GEAR HOUSING GEARS - V6 MECHANICAL / HYDRAULIC SHIFT
#22621 #22652 #22625
Forward & Pinion Set Reverse Gear Clutch Dog
COMPLETE GEAR SET
- Forward/Pinion/Reverse GLM #22620 OEM N/A
- 14/26 teeth
- Comes with the GLM #22625 clutch
FORWARD & PINION SET GLM #22621 OEM #5004941
- 14/26 teeth
REVERSE GEAR & CLUTCH GLM #22652 OEM #437297
- 26 teeth
OEM #337774,
CLUTCH GLM #22625
914716, 915272
LOWER GEAR HOUSING GEARS APPLICATION GUIDE
Lower Drive Prop Pinion/Fwd Reverse Clutch Complete Set
Model Year
Shaft Shaft Gear Set Gear Dog w/ Clutch Dog
HYDRAULIC SHIFT (1978-1980)
120/140 1978-1980 - - - - 22633 -
185/225 1978-1980 22413 - 22621 22624 22625 22620
240/250 Ford 1978-1979 22413 - 22621 22624 22625 22620
200/230/260 1978-1980 22413 - 22621 22624 22625 22620
MECHANICAL SHIFT (1981-1985)
120/2.5 1981-1985 - 22416 22631 22632 22633 22630
140/3.0 1981-1985 - 22416 22631 22632 22633 22630
3.8 1981-1985 22413 22414 22666* 22625 -
3.8 1981-1985 22413 22414 22623 22624 22625 22622
4.3 1985 22413 22414 22666* 22625 -
4.3 1985 22413 22414 22623 22624 22625 22622
200/230/260 1981 22413 22414 22666* 22625 -
5.0/5.7 1982-1985 22413 22414 22666* 22625 -
* Heavy Duty Gear Set
For the 1978 model year the OMC stringer sterndrive was redesigned, the old electric shift lower gear housing was replaced with
this new hydraulic shift assist, large diameter, V6 gear housing. The hydraulic shift assist lower gear housing did not prove to
be reliable and was replaced with a mechanical shift lower gear housing on the 1979 and newer V6 outboards and the 1981
and newer OMC sterndrives. OMC made available to owners of 1978-1980 sterndrives a mechanical shift lower gear housing
conversion kit for a very low price. This kit consisted of a complete lower gear housing, an ESA (electronic shift assist) box,
ESA activation switch and two shift overstroke switches.
It is the customer’s responsibility to determine if a 1978-1980 OMC sterndrive has the original hydraulic shift assist
lower gear housing or has been converted to the mechanical shift lower gear housing.
