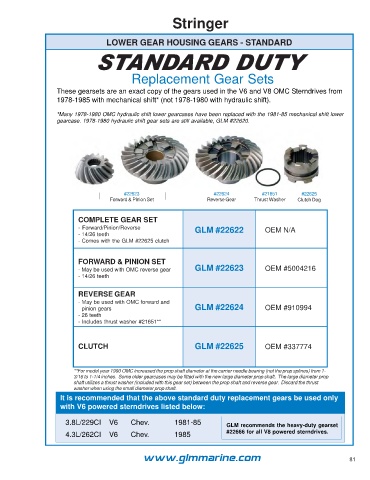

Stringer

LOWER GEAR HOUSING GEARS - STANDARD
STANDARD DUTY

Replacement Gear Sets

These gearsets are an exact copy of the gears used in the V6 and V8 OMC Sterndrives from
1978-1985 with mechanical shift* (not 1978-1980 with hydraulic shift).

*Many 1978-1980 OMC hydraulic shift lower gearcases have been replaced with the 1981-85 mechanical shift lower
gearcase. 1978-1980 hydraulic shift gear sets are still available, GLM #22620.

#22623 #22624 #21651 #22625
Forward & Pinion Set Reverse Gear Thrust Washer Clutch Dog

COMPLETE GEAR SET
- Forward/Pinion/Reverse GLM #22622 OEM N/A
- 14/26 teeth
- Comes with the GLM #22625 clutch

FORWARD & PINION SET
- May be used with OMC reverse gear GLM #22623 OEM #5004216
- 14/26 teeth

REVERSE GEAR
- May be used with OMC forward and
pinion gears GLM #22624 OEM #910994
- 26 teeth
- Includes thrust washer #21651**

CLUTCH GLM #22625 OEM #337774

**For model year 1990 OMC increased the prop shaft diameter at the carrier needle bearing (not the prop splines) from 1-
3/16 to 1-1/4 inches. Some older gearcases may be fitted with the new large diameter prop shaft. The large diameter prop
shaft utilizes a thrust washer (included with this gear set) between the prop shaft and reverse gear. Discard the thrust
washer when using the small diameter prop shaft.
It is recommended that the above standard duty replacement gears be used only
with V6 powered sterndrives listed below:

3.8L/229CI V6 Chev. 1981-85 GLM recommends the heavy-duty gearset

4.3L/262CI V6 Chev. 1985 #22666 for all V8 powered sterndrives.

www.glmmarine.com 81
