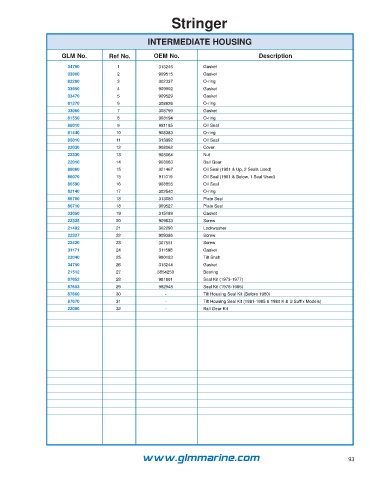

Stringer
INTERMEDIATE HOUSING
GLM No. Ref No. OEM No. Description
34760 1 313246 Gasket
33900 2 909515 Gasket
82260 3 302337 O-ring
33950 4 909902 Gasket
33470 5 909529 Gasket
81270 6 308626 O-ring
33060 7 308799 Gasket
81550 8 908194 O-ring
86010 9 981195 Oil Seal
81440 10 908383 O-ring
85010 11 313992 Oil Seal
22030 12 908062 Cover
22330 13 908064 Nut
22010 14 908063 Ball Gear
86060 15 321467 Oil Seal (1981 & Up, 2 Seals Used)
86070 15 911019 Oil Seal (1981 & Below, 1 Seal Used)
86590 16 908855 Oil Seal
82140 17 302540 O-ring
86700 18 313080 Plate Seal
86710 18 909527 Plate Seal
33050 19 315189 Gasket
22325 20 909533 Screw
21492 21 302290 Lockwasher
22327 22 909386 Screw
22420 23 307551 Screw
31171 24 311598 Gasket
22040 25 980183 Tilt Shaft
34750 26 313244 Gasket
21512 27 3854250 Bearing
87652 28 981801 Seal Kit (1973-1977)
87653 29 982948 Seal Kit (1978-1985)
87660 30 - Tilt Housing Seal Kit (Before 1980)
87670 31 - Tilt Housing Seal Kit (1981-1985 & 1980 K & U Suffix Models)
22050 32 - Ball Gear Kit
