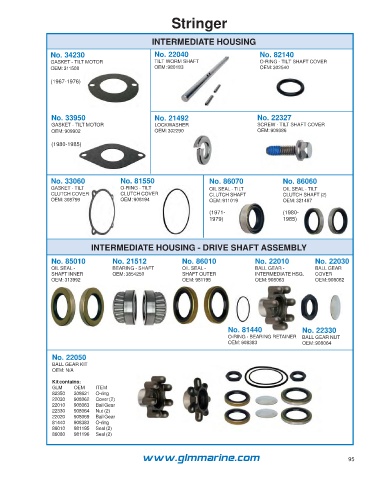

Page 95 - OMC_Catalog_Flipbook

Stringer

INTERMEDIATE HOUSING
No. 34230 No. 22040 No. 82140
GASKET - TILT MOTOR TILT WORM SHAFT O-RING - TILT SHAFT COVER
OEM: 311508 OEM: 980183 OEM: 302540
(1967-1976)

No. 33950 No. 21492 No. 22327
GASKET - TILT MOTOR LOCKWASHER SCREW - TILT SHAFT COVER
OEM: 909902 OEM: 302290 OEM: 909386

(1980-1985)

No. 33060 No. 81550 No. 86070 No. 86060
GASKET - TILT O-RING - TILT OIL SEAL - TILT OIL SEAL - TILT
CLUTCH COVER CLUTCH COVER CLUTCH SHAFT CLUTCH SHAFT (2)
OEM: 308799 OEM: 908194 OEM: 911019 OEM: 321467
(1971- (1980-
1979) 1985)

INTERMEDIATE HOUSING - DRIVE SHAFT ASSEMBLY

No. 85010 No. 21512 No. 86010 No. 22010 No. 22030
OIL SEAL - BEARING - SHAFT OIL SEAL - BALL GEAR - BALL GEAR
SHAFT INNER OEM: 3854250 SHAFT OUTER INTERMEDIATE HSG. COVER
OEM: 313992 OEM: 981195 OEM: 908063 OEM: 908062

No. 81440 No. 22330
O-RING - BEARING RETAINER BALL GEAR NUT
OEM: 908383 OEM: 908064

No. 22050
BALL GEAR KIT
OEM: N/A
Kit contains:
GLM OEM ITEM
82350 308621 O-ring
22030 908062 Cover (2)
22010 908063 Ball Gear
22330 908064 Nut (2)
22020 908069 Ball Gear
81440 908383 O-ring
86010 981195 Seal (2)
86080 981196 Seal (2)

www.glmmarine.com 95
