Yamaha

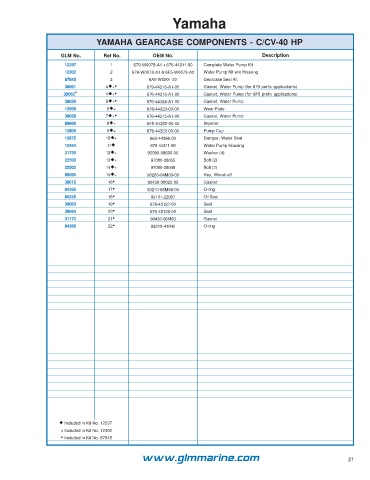

YAMAHA GEARCASE COMPONENTS - C/CV-40 HP

GLM No. Ref No. OEM No. Description
12237 1 679-W0078-A1 + 676-44311-00 Complete Water Pump Kit
12302 2 679-W0078-A1 & 6F5-W0078-A0 Water Pump Kit w/o Housing
87845 3 6A0-W0001-22 Gearcase Seal Kit
38061 4+• 679-44316-A1-00 Gasket, Water Pump (for 679 prefix applications)
38062* 4+• 676-44316-A1-00 Gasket, Water Pump (for 6F5 prefix applications)
38059 5+• 676-44324-A1-00 Gasket, Water Pump
12509 6+ 676-44323-00-00 Wear Plate
38058 7+• 676-44315-A1-00 Gasket, Water Pump
89660 8+ 6F5-44352-00-00 Impeller
12805 9+ 676-44322-00-00 Pump Cup
12875 10+ 663-44366-00 Damper, Water Seal
12454 11 676-44311-00 Water Pump Housing
21720 12+ 92990-08600-00 Washer (4)
22503 13+ 97080-08055 Bolt (2)
22502 14+ 97080-08045 Bolt (2)
89595 15+ 90280-04M00-00 Key, Woodruff
38015 16• 90430-08020-00 Gasket
84265 17• 93210-66M98-00 O-ring
85225 18• 93101-22067 Oil Seal
38063 19• 676-45127-00 Seal
38064 20• 676-45128-00 Seal
31172 21• 90430-06M03 Gasket
84260 22• 93210-41042 O-ring

 Included in Kit No. 12237
+ Included in Kit No. 12302
• Included in Kit No. 87845

www.glmmarine.com 21
